. . A circular highway curve has the following design elements: • 1 = 65°32'17" • D=3052'00" . Pl station = 36 + 45.00 P

Post by answerhappygod »

A Circular Highway Curve Has The Following Design Elements 1 65 32 17 D 3052 00 Pl Station 36 45 00 P 1
A Circular Highway Curve Has The Following Design Elements 1 65 32 17 D 3052 00 Pl Station 36 45 00 P 1 (64.32 KiB) Viewed 8 times

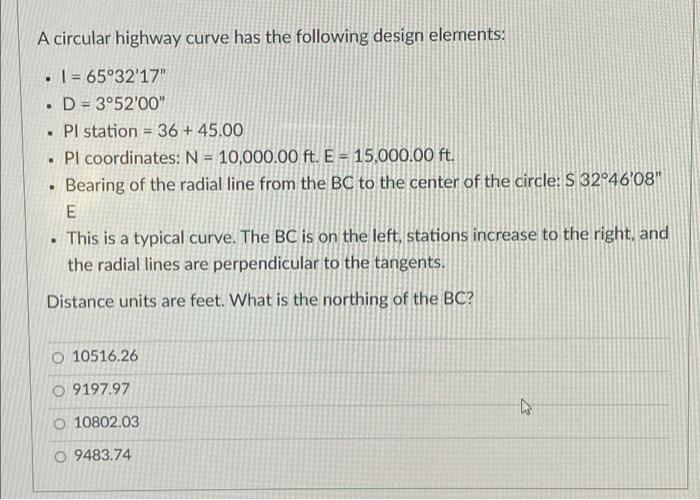

. . A circular highway curve has the following design elements: • 1 = 65°32'17" • D=3052'00" . Pl station = 36 + 45.00 Pl coordinates: N = 10,000.00 ft. E = 15,000.00 ft. Bearing of the radial line from the BC to the center of the circle: S 32°46'08" E This is a typical curve. The BC is on the left, stations increase to the right, and the radial lines are perpendicular to the tangents. Distance units are feet. What is the northing of the BC? . . O 10516.26 O 9197.97 2 O 10802.03 o 9483.74
