Problem 3 20 Pts The T Beam Is Constructed As Shown If The Allowable Shear Stress For The Wood Is 500psi Determine T 1 (71.52 KiB) Viewed 10 times
please do it in 25 minutes please urgently.. I'll give you up thumb definitely

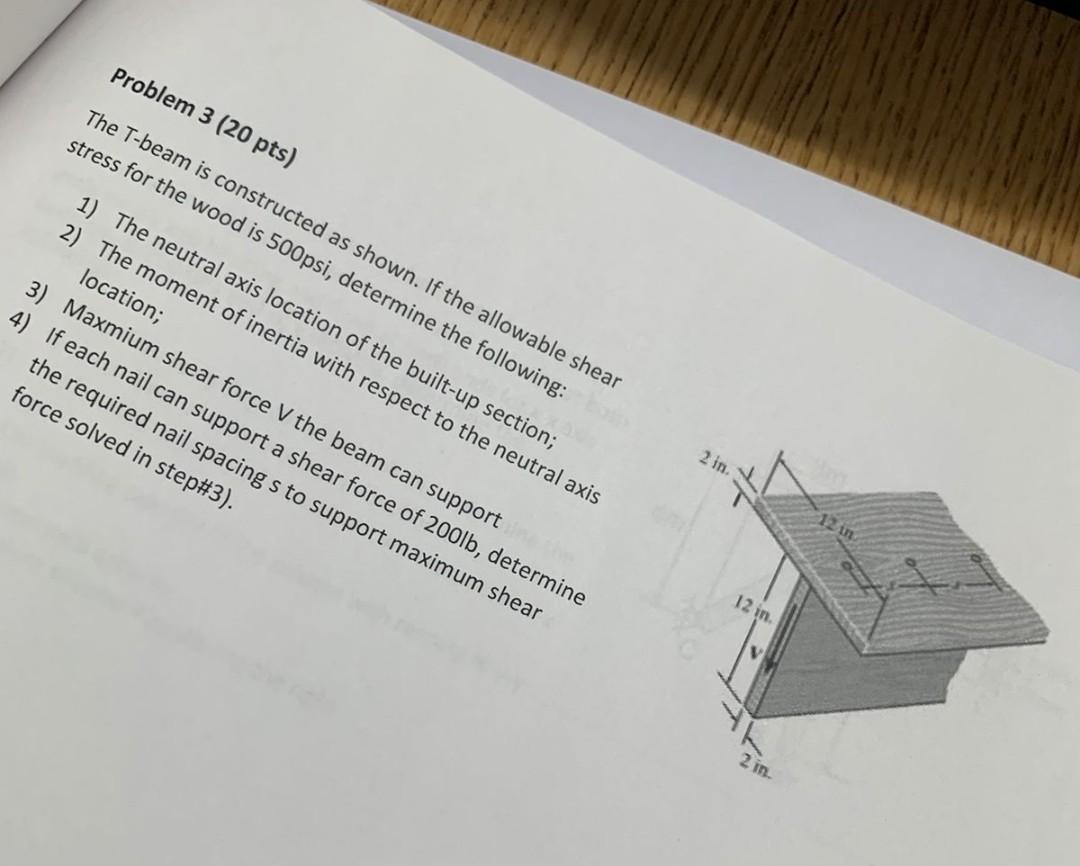

Problem 3 (20 pts) The T-beam is constructed as shown. If the allowable shear stress for the wood is 500psi, determine the following: 1) The neutral axis location of the built-up section; 2) The moment of inertia with respect to the neutral axis location; 3) Maxmium shear force V the beam can support 4) If each nail can support a shear force of 200lb, determine the required nail spacing s to support maximum shear force solved in step#3). 2 in 12 in 2 in
