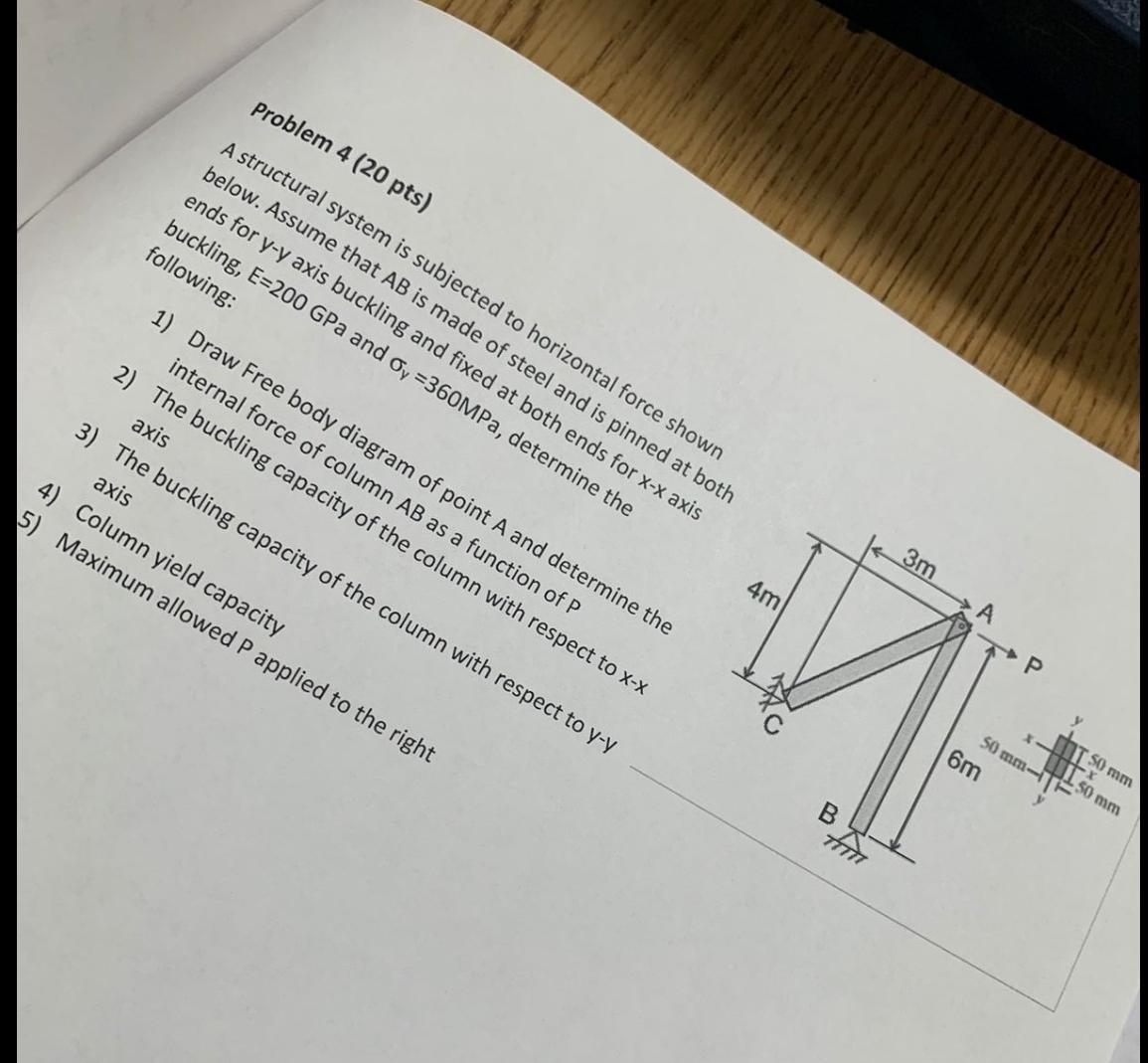

Problem 4 (20 pts) A structural system is subjected to horizontal force shown below. Assume that AB is made of steel and is pinned at both ends for y-y axis buckling and fixed at both ends for x-x axis buckling, E=200 GPa and Oy =360MPa, determine the following: 1) Draw Free body diagram of point A and determine the internal force of column AB as a function of P 2) The buckling capacity of the column with respect to x-x axis 3) The buckling capacity of the column with respect to y-y axis 4) Column yield capacity 5) Maximum allowed P applied to the right 3m 4m А - Р 50 mm- 6m 50 mm 50 mm g
