Problem 2 (20 pts) 2-12 Beam ABCD has a constant square cross section of 0.2m x 0.2m, and it is subjected to a series of

Post by answerhappygod »

Problem 2 20 Pts 2 12 Beam Abcd Has A Constant Square Cross Section Of 0 2m X 0 2m And It Is Subjected To A Series Of 1
Problem 2 20 Pts 2 12 Beam Abcd Has A Constant Square Cross Section Of 0 2m X 0 2m And It Is Subjected To A Series Of 1 (49.43 KiB) Viewed 24 times
please do it in 25 minutes please urgently.. I'll give you up thumb definitely

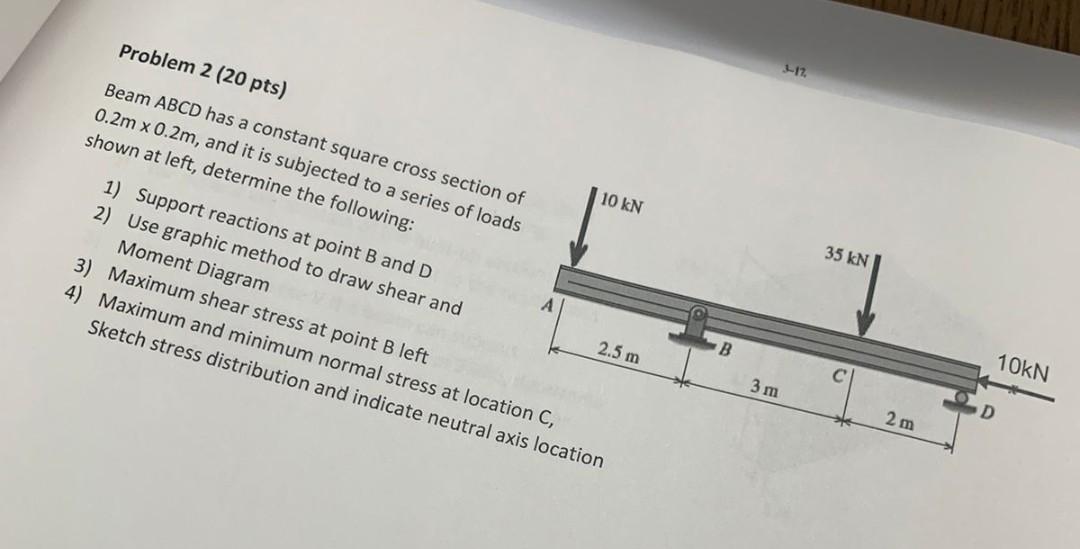

Problem 2 (20 pts) 2-12 Beam ABCD has a constant square cross section of 0.2m x 0.2m, and it is subjected to a series of loads shown at left, determine the following: 10 KN 1) Support reactions at point B and D 2) Use graphic method to draw shear and 2.5 m Moment Diagram 3) Maximum shear stress at point B left 4) Maximum and minimum normal stress at location C, Sketch stress distribution and indicate neutral axis location 35 kN B 10kN 3 m D 2 m
