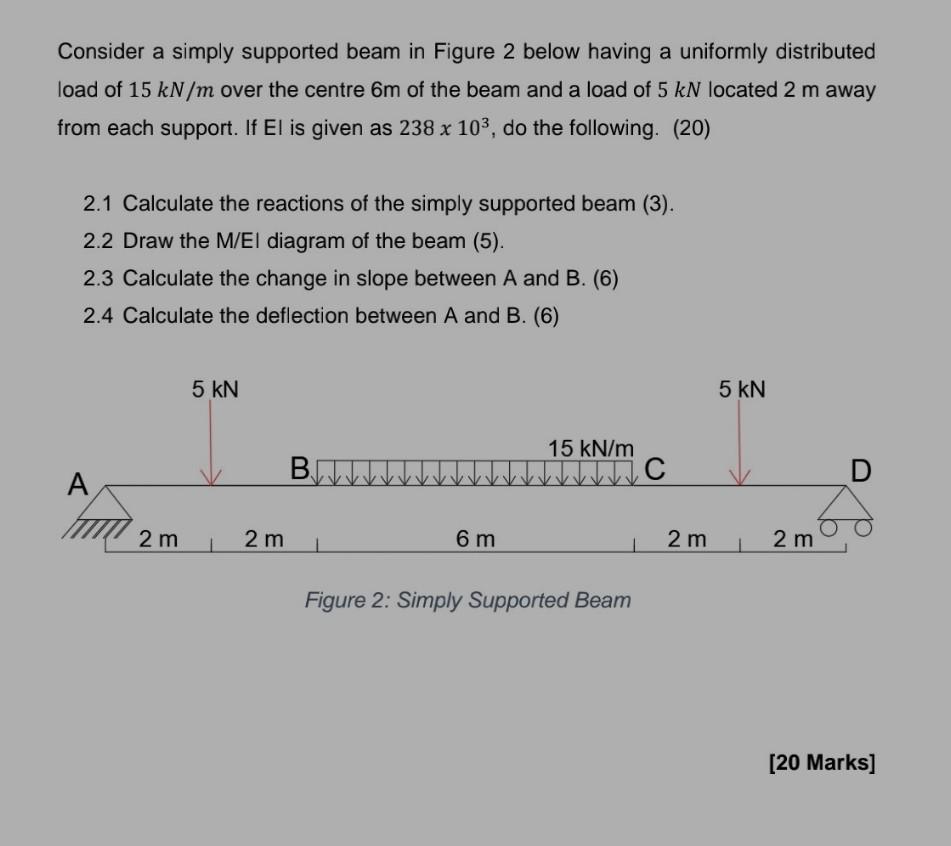

- Consider A Simply Supported Beam In Figure 2 Below Having A Uniformly Distributed Load Of 15 Kn M Over The Centre 6m Of 1 (55.42 KiB) Viewed 12 times
Consider a simply supported beam in Figure 2 below having a uniformly distributed load of 15 kN/m over the centre 6m of the beam and a load of 5 kN located 2 m away from each support. If El is given as 238 x 103, do the following. (20) 2.1 Calculate the reactions of the simply supported beam (3). 2.2 Draw the M/El diagram of the beam (5). 2.3 Calculate the change in slope between A and B. (6) 2.4 Calculate the deflection between A and B. (6) 5 KN 5 kN BT 15 kN/m С D A 2 m 2 m 1 6 m 2 m 2 m Figure 2: Simply Supported Beam [20 Marks]
