Given The Frame In Figure 1 Below Do The Following 1 1 Calculate The Reactions At A B And D 7 1 2 Draw The Shear 1 (45.38 KiB) Viewed 21 times
may I please get assisted on this question

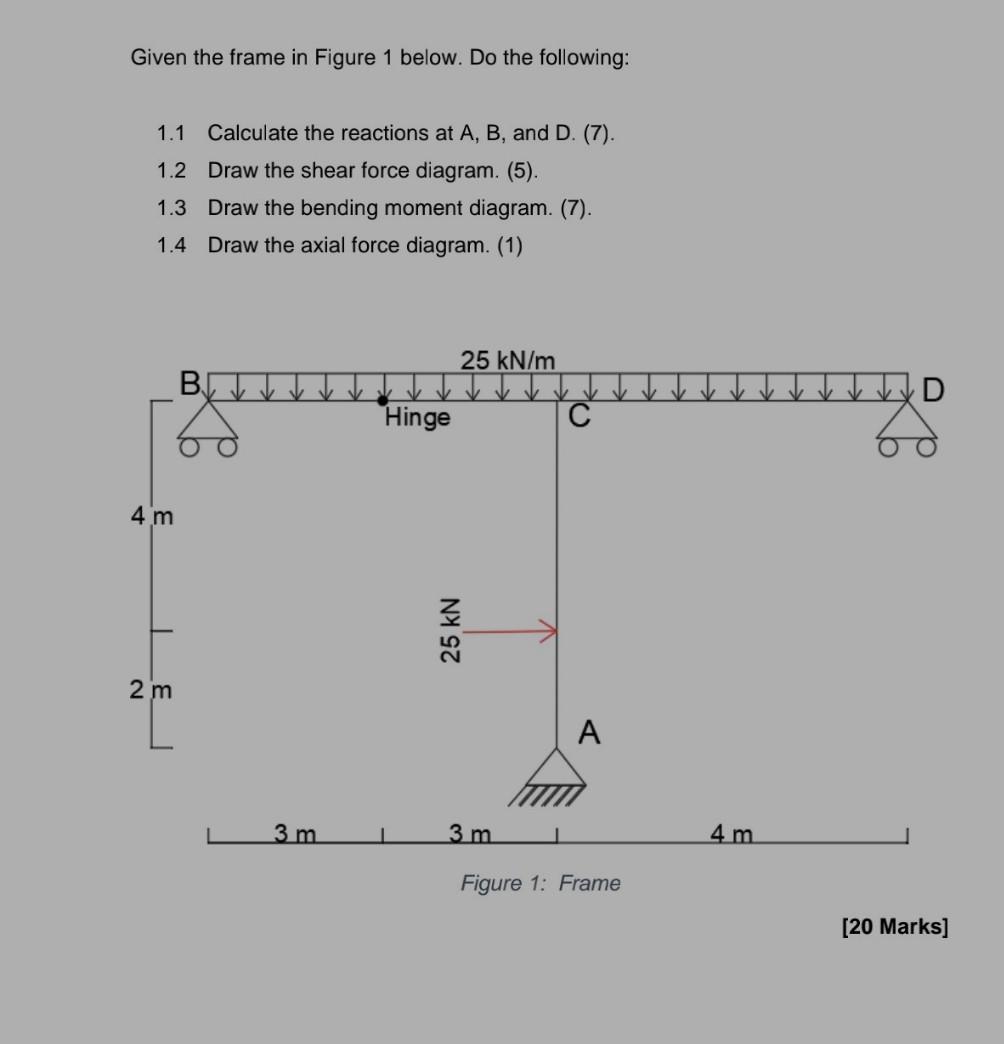

Given the frame in Figure 1 below. Do the following: 1.1 Calculate the reactions at A, B, and D. (7). 1.2 Draw the shear force diagram. (5). 1.3 Draw the bending moment diagram. (7). 1.4 Draw the axial force diagram. (1) 25 kN/m D Hinge с 4 m - 25 kN 2 m A 3 m 1 3 m 1 4 m Figure 1: Frame [20 Marks]
