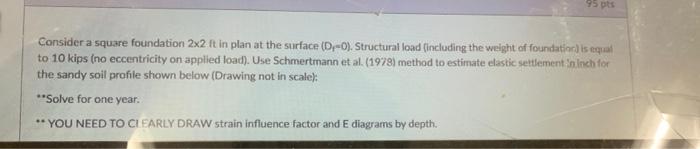

93 pts Consider a square foundation 2x2 it in plan at the surface (0-0). Structural load (including the weight of foundatior) is equal to 10 kips (no eccentricity on applied load). Use Schmertmann et al. (1978) method to estimate elastic settlement Sn Inch for the sandy soil profile shown below (Drawing not in scale): **Solve for one year. ** YOU NEED TO CLEARLY DRAW strain influence factor and E diagrams by depth.

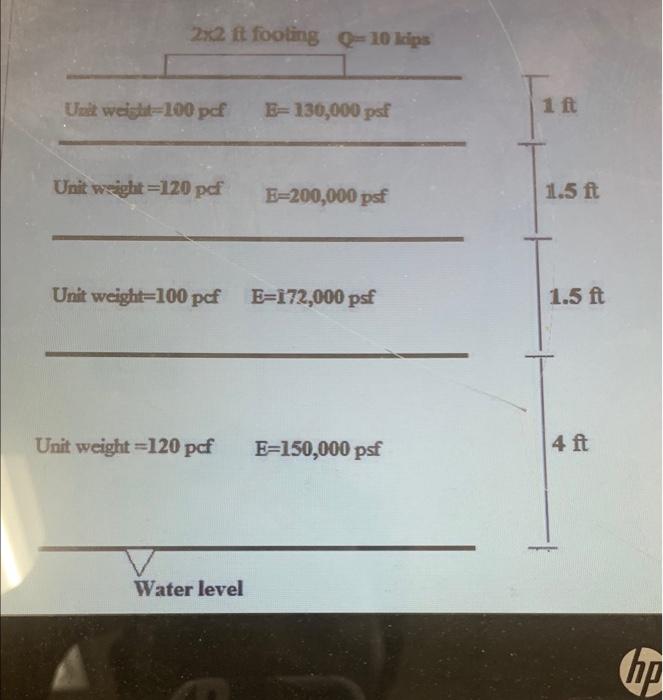

2x2 ft footing (10 lips Q- Unit weight=100 pdf E=130,000 psf 1 ft Unit weight =120 pof E=200,000 psf 11.5 ft Unit weight=100 pof E=172,000 psf 1.5 ft Unit weight =120 pcf E=150,000 psf 4 ft Water level hp
