Problem 2 (20 pts) 10 KN Beam ABCD has a constant square cross section of 0.2m x 0.2m, and it is subjected to a series o

Post by answerhappygod »

Problem 2 20 Pts 10 Kn Beam Abcd Has A Constant Square Cross Section Of 0 2m X 0 2m And It Is Subjected To A Series O 1
Problem 2 20 Pts 10 Kn Beam Abcd Has A Constant Square Cross Section Of 0 2m X 0 2m And It Is Subjected To A Series O 1 (24.51 KiB) Viewed 16 times

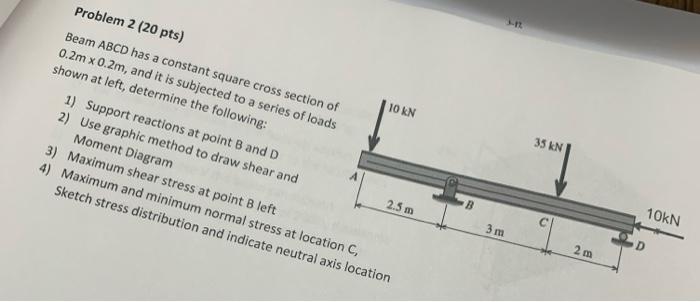

Problem 2 (20 pts) 10 KN Beam ABCD has a constant square cross section of 0.2m x 0.2m, and it is subjected to a series of loads shown at left, determine the following: 1) Support reactions at point B and D 2) Use graphic method to draw shear and Moment Diagram 3) Maximum shear stress at point B left 4) Maximum and minimum normal stress at location C, Sketch stress distribution and indicate neutral axis location 35 kN 2.5 m B 10KN 3 m 2 m
