Express the influence line of reactions Ay, By, Ex, and Ey, of
the beam in Fig. 5, in terms of x, as appropriate. Set the origin
of the moving vertical, unit-load at A. Reduce the expressions to
their simplest form.

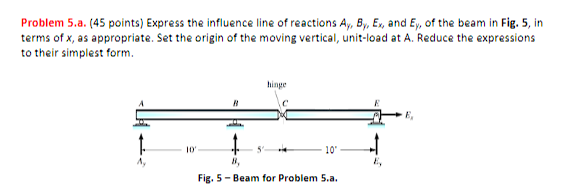

Express The Influence Line Of Reactions Ay By Ex And Ey Of The Beam In Fig 5 In Terms Of X As Appropriate Set Th 1 (21.28 KiB) Viewed 15 times
Problem 5.a. (45 points) Express the influence line of reactions Ay, By, Ex, and Ey, of the beam in Fig. 5, in terms of x, as appropriate. Set the origin of the moving vertical, unit-load at A. Reduce the expressions to their simplest form. Nige E 10 5 10 A Fig. 5 - Beam for Problem 5.a.
