4m 3 m m Question 1. For the truss shown on the figure, please use the matrix method to: (1) assign the global coordinat

Post by answerhappygod »

4m 3 M M Question 1 For The Truss Shown On The Figure Please Use The Matrix Method To 1 Assign The Global Coordinat 1
4m 3 M M Question 1 For The Truss Shown On The Figure Please Use The Matrix Method To 1 Assign The Global Coordinat 1 (25.98 KiB) Viewed 8 times

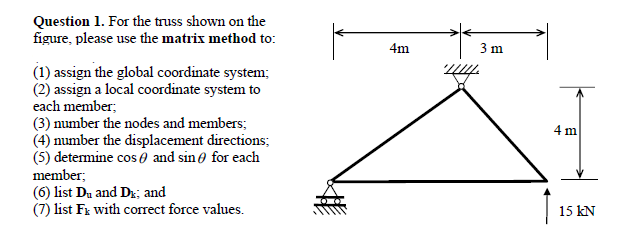

4m 3 m m Question 1. For the truss shown on the figure, please use the matrix method to: (1) assign the global coordinate system; (2) assign a local coordinate system to each member; (3) number the nodes and members; (4) number the displacement directions; (5) determine cos and sine for each member; (6) list D, and Dx; and (7) list Fx with correct force values. 4 m 15 KN
