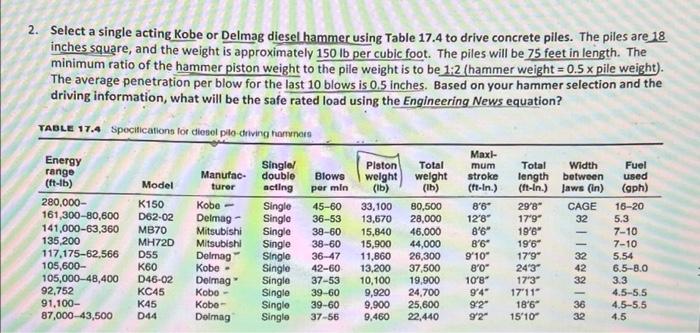

nation 2. Select a single acting Kobe or Delmag diesel hammer using Table 17.4 to drive concrete piles. The piles are 18 inches square, and the weight is approximately 150 lb per cubic foot. The piles will be 75 feet in length. The minimum ratio of the hammer piston weight to the pile weight is to be 1:2 (hammer weight = 0.5 x pile weight). The average penetration per blow for the last 10 blows is 0.5 inches. Based on your hammer selection and the driving information, what will be the safe rated load using the Engineering News equation? TABLE 17.4 Specifications for diesel pilo-criving homens Maxi- Single/ Piston Total mum Total Width Fuel Manufac- double Blows welght weight stroke (ft-1b) length between used Model turer acting per min (lb) (lb) (ft-In.) (ft-in.) Jaws (in) (aph) 280,000- K150 Kobo - Single 45-60 33,100 80,500 8'8" 29'8" CAGE 16-20 161,300-80,600 D62-02 Delmag- Single 36-53 13,670 28,000 12'8" 17'9" 32 5.3 141,000-63,360 MB70 Mitsubishi Single 38-60 15,840 46.000 8'6" 19'6" 7-10 135,200 MH720 Mitsubishi Single 38-60 15,900 44,000 B'6" 19'6" 117,175-62,566 D55 Delmag Single 36-47 11,860 26,300 9'10" 17'9" 32 5.54 105,600- Kobe - Single 42-60 13,200 37,500 8'0" 24'3" 6.5-3.0 105,000-48,400 D46-02 Delmag Single 37-53 10,100 19,900 10'8" 17'3" 32 3.3 92,752 KC45 Kobo - Single 39-60 9,920 24,700 94" 17'11" 4.5-5.5 91,100- K45 Kobo Single 39-60 9,900 25,600 9 2" 18'6" 36 4.5-5.5 87,000-43,500 044 Dolmag Single 9,460 22,440 9'2" 15'10 32 4.5 Energy rango 7-10 K60 42 启」铝合总|| 37-56
