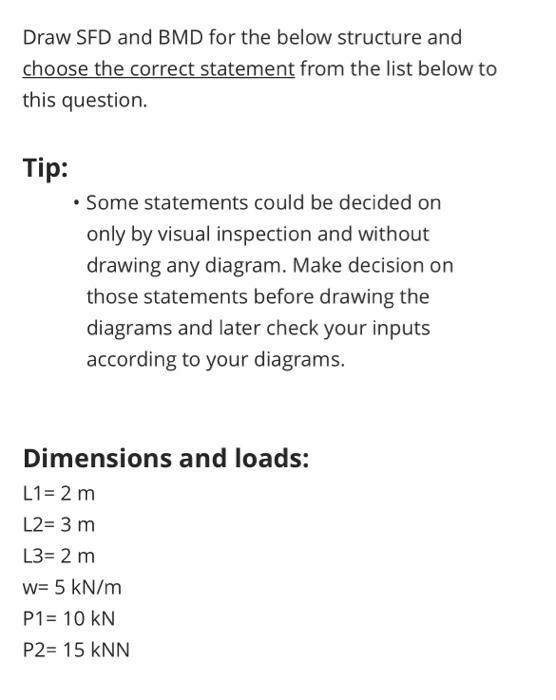

Draw SFD and BMD for the below structure and choose the correct statement from the list below to this question. Tip: • Some statements could be decided on only by visual inspection and without drawing any diagram. Make decision on those statements before drawing the diagrams and later check your inputs according to your diagrams. Dimensions and loads: L1= 2 m L2= 3 m L3= 2 m w= 5 kN/m P1 = 10 KN P2= 15 KNN

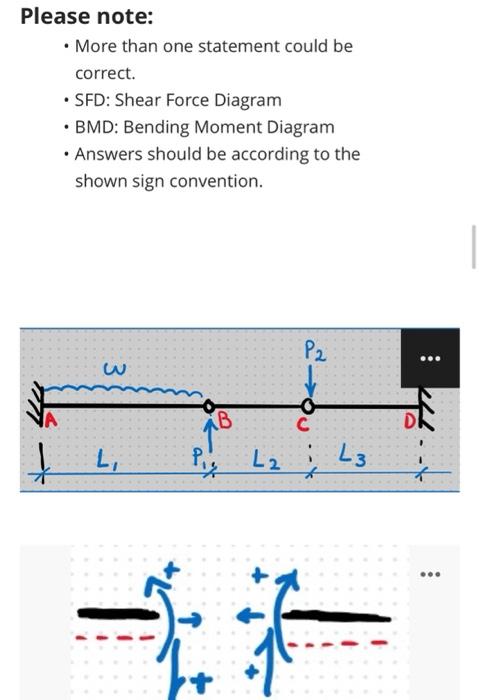

Please note: . More than one statement could be correct. SFD: Shear Force Diagram • BMD: Bending Moment Diagram • Answers should be according to the shown sign convention. P2 w с AB } Li P L2 L3 *

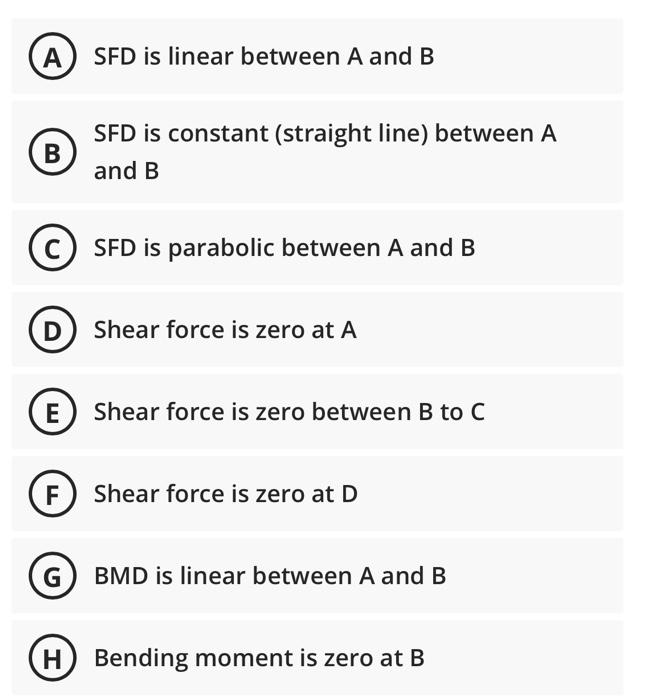

A) SFD is linear between A and B A B B SFD is constant (straight line) between A and B B © SFD is parabolic between A and B D Shear force is zero at A A E C Shear force is zero between B to C (F) Shear force is zero at D G) BMD is linear between A and B A H Bending moment is zero at B

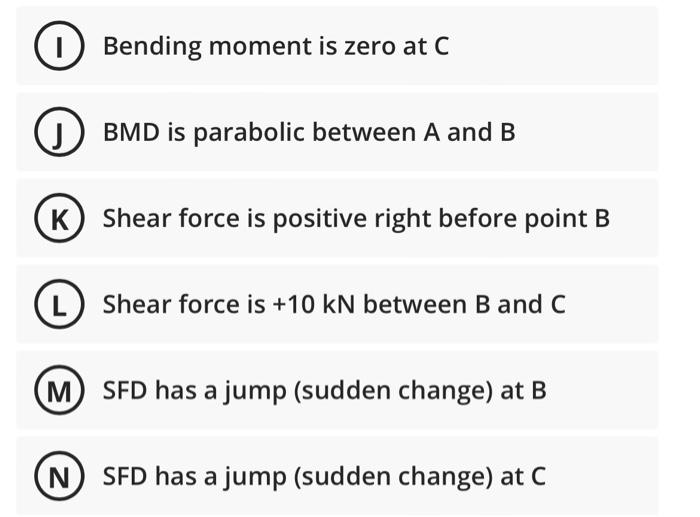

0 Bending moment is zero at C (BMD is parabolic between A and B K Shear force is positive right before point B (L) Shear force is +10 kN between B and C M SFD has a jump (sudden change) at B NSFD has a jump (sudden change) at C
