includes graph also

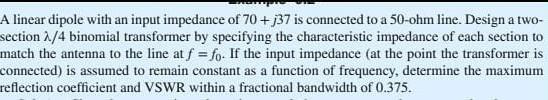

A linear dipole with an input impedance of 70 +137 is connected to a 50-ohm line. Design a two- section 1/4 binomial transformer by specifying the characteristic impedance of each section to match the antenna to the line at f = fo. If the input impedance at the point the transformer is connected) is assumed to remain constant as a function of frequency, determine the maximum reflection coefficient and VSWR within a fractional bandwidth of 0.375.
