2- A N 45° 'E back tangent line intersects a S 85E forward tangent line at point "Pl." The BC and the EC are located at
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
2- A N 45° 'E back tangent line intersects a S 85E forward tangent line at point "Pl." The BC and the EC are located at

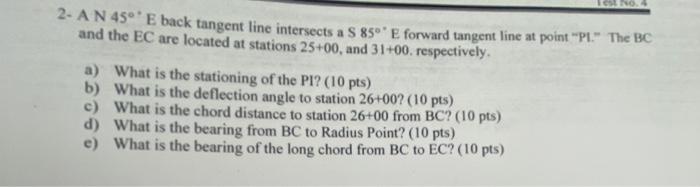

2- A N 45° 'E back tangent line intersects a S 85E forward tangent line at point "Pl." The BC and the EC are located at stations 25+00, and 31+00. respectively, a) What is the stationing of the Pl? (10 pts) b) What is the deflection angle to station 26+00? (10 pts) c) What is the chord distance to station 26+00 from BC? (10 pts) d) What is the bearing from BC to Radius Point? (10 pts) e) What is the bearing of the long chord from BC to EC? (10 pts)
