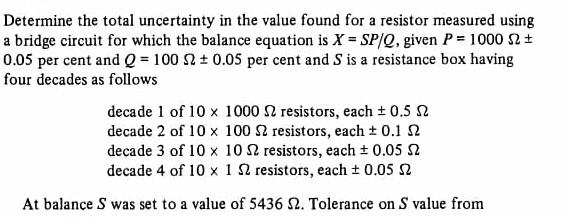

Determine the total uncertainty in the value found for a resistor measured using a bridge circuit for which the balance equation is X = SP/Q, given P = 1000+ 0.05 per cent and Q = 100 S2 0.05 per cent and S is a resistance box having four decades as follows decade 1 of 10 x 1000 S2 resistors, each +0.5 22 decade 2 of 10 x 100 S2 resistors, each 0.1 12 decade 3 of 10 x 10 12 resistors, each +0.05 12 decade 4 of 10 x 112 resistors, each +0.05 12 At balance S was set to a value of 5436 2. Tolerance on S value from
