GI Problem 1. (30 points) For the floor plan shown in Fig. 1, determine the following: (a) Classify the slabs of S1 and

[answerhappygod]

Gi Problem 1 30 Points For The Floor Plan Shown In Fig 1 Determine The Following A Classify The Slabs Of S1 And 1 (30.61 KiB) Viewed 19 times

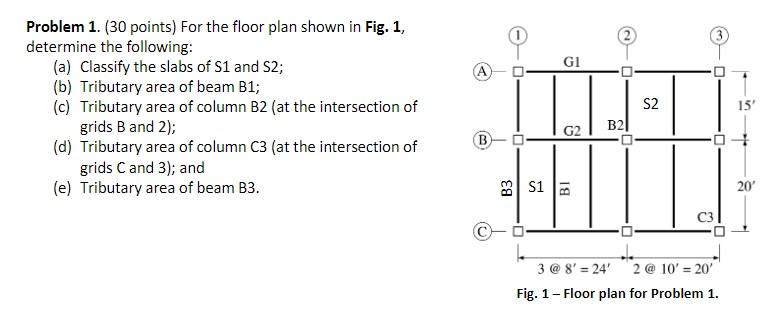

GI Problem 1. (30 points) For the floor plan shown in Fig. 1, determine the following: (a) Classify the slabs of S1 and S2; (b) Tributary area of beam B1; (c) Tributary area of column B2 (at the intersection of grids B and 2); (d) Tributary area of column C3 (at the intersection of grids C and 3); and (e) Tributary area of beam B3. S2 15' G2 B21 B $1 20 C3 3 @ 8' = 24 2 @ 10' = 20 Fig. 1 - Floor plan for Problem 1.
