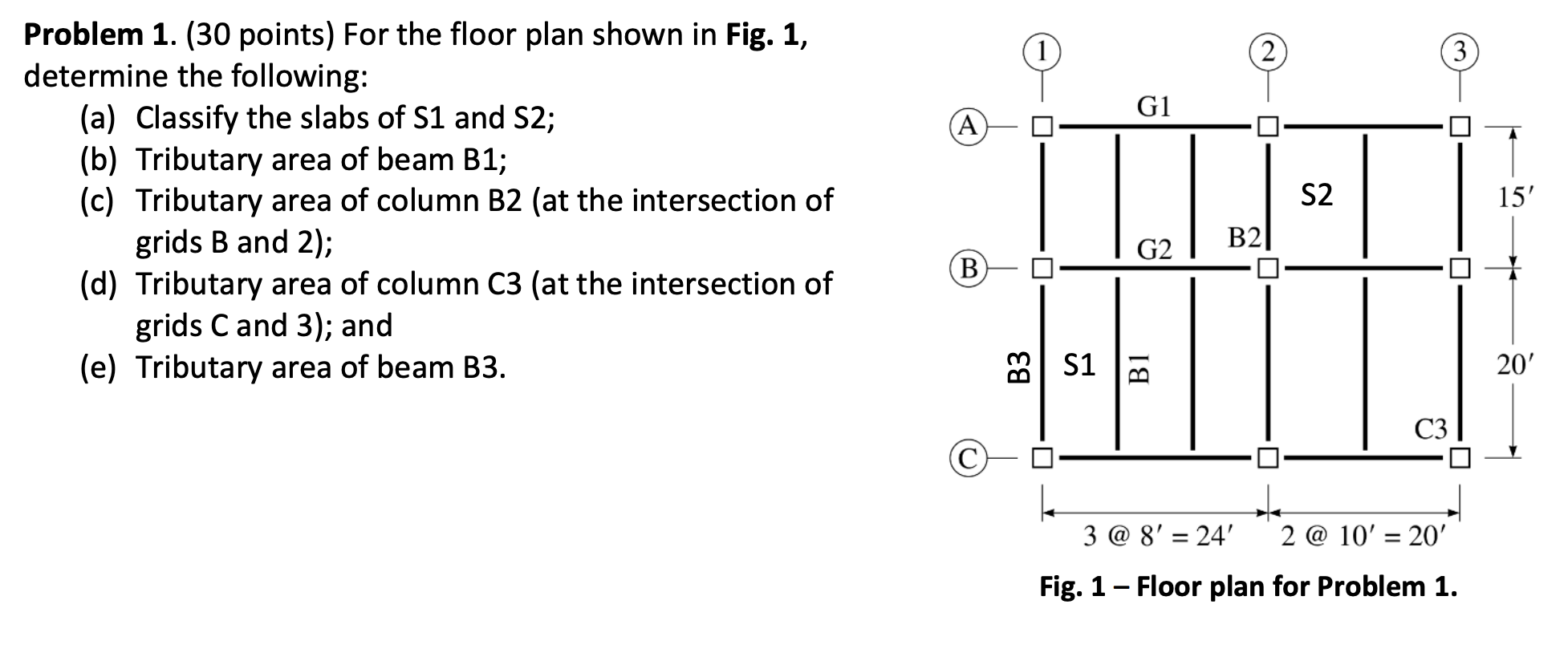

Problem 1. (30 points) For the floor plan shown in Fig. 1,
determine the following:
(a) Classify the slabs of S1 and S2;
(b) Tributary area of beam B1;
(c) Tributary area of column B2 (at the intersection of grids B
and 2);
(d) Tributary area of column C3 (at the intersection of grids C
and 3); and
(e) Tributary area of beam B3.
Problem 1 30 Points For The Floor Plan Shown In Fig 1 Determine The Following A Classify The Slabs Of S1 And S2 1 (136.58 KiB) Viewed 13 times
2 3 G1 A Problem 1. (30 points) For the floor plan shown in Fig. 1, determine the following: (a) Classify the slabs of S1 and S2; (b) Tributary area of beam B1; (c) Tributary area of column B2 (at the intersection of grids B and 2); (d) Tributary area of column C3 (at the intersection of grids C and 3); and (e) Tributary area of beam B3. S2 15' G2 B2 B B3 S1 B1 20' C3 3 @ 8' = 24' = 2 @ 10' = 20 = Fig. 1 - Floor plan for Problem 1.
