Problem 5.a. (45 points) Express the influence line of reactions A, B, E, and Ey, of the beam in Fig. 5, in terms of x,
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Problem 5.a. (45 points) Express the influence line of reactions A, B, E, and Ey, of the beam in Fig. 5, in terms of x,

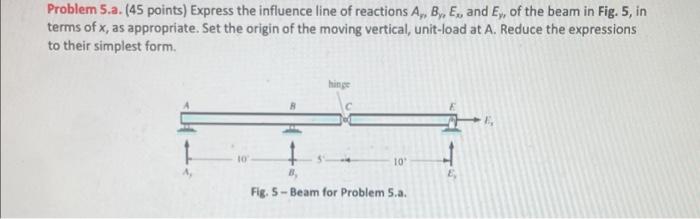

Problem 5.a. (45 points) Express the influence line of reactions A, B, E, and Ey, of the beam in Fig. 5, in terms of x, as appropriate. Set the origin of the moving vertical, unit-load at A. Reduce the expressions to their simplest form. hinge 10 10 Fig. 5 - Beam for Problem 5.a.
