Problem 5.a. (45 points) Express the influence line of reactions Ay, By, Ex, and Ey, of the beam in Fig. 5, in terms of

[answerhappygod]

Problem 5 A 45 Points Express The Influence Line Of Reactions Ay By Ex And Ey Of The Beam In Fig 5 In Terms Of 1 (101.14 KiB) Viewed 13 times

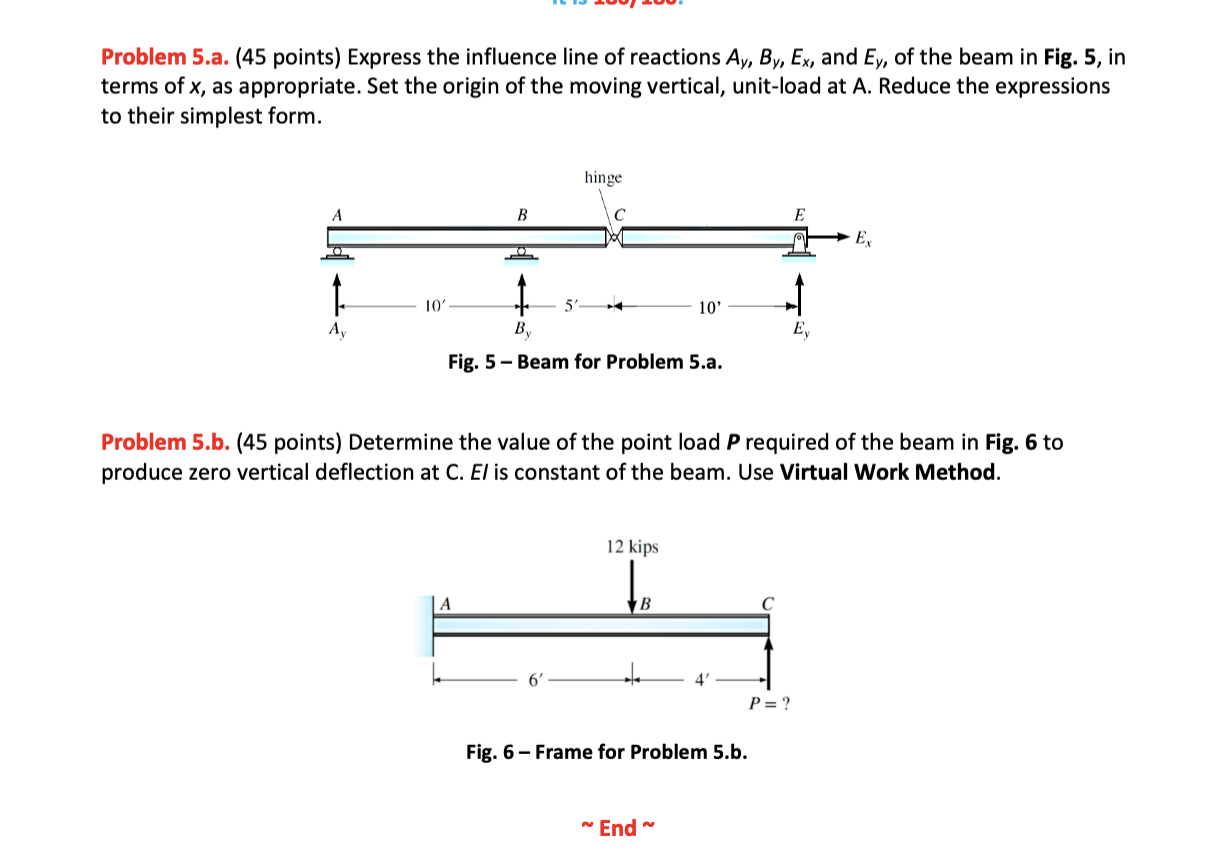

Problem 5.a. (45 points) Express the influence line of reactions Ay, By, Ex, and Ey, of the beam in Fig. 5, in terms of x, as appropriate. Set the origin of the moving vertical, unit-load at A. Reduce the expressions to their simplest form. hinge А B C E ܩ AY 10' 5 10 BY Fig. 5 - Beam for Problem 5.a. E Problem 5.b. (45 points) Determine the value of the point load P required of the beam in Fig. 6 to produce zero vertical deflection at C. El is constant of the beam. Use Virtual Work Method. 12 kips А с 4' P= ? Fig. 6 - Frame for Problem 5.b. ~ End
