- 3 Gi A Problem 1 30 Points For The Floor Plan Shown In Fig 1 Determine The Following A Classify The Slabs Of S1 1 (35.94 KiB) Viewed 10 times
3 GI A Problem 1. (30 points) For the floor plan shown in Fig. 1, determine the following: (a) Classify the slabs of S1
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
3 GI A Problem 1. (30 points) For the floor plan shown in Fig. 1, determine the following: (a) Classify the slabs of S1

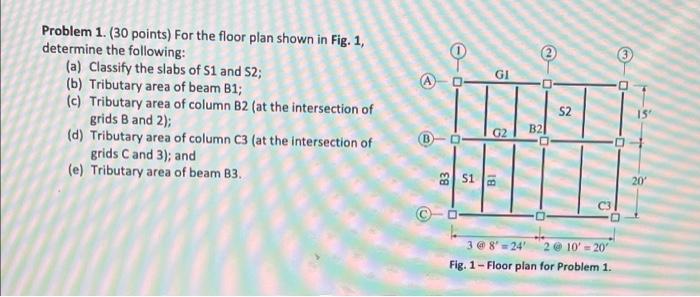

3 GI A Problem 1. (30 points) For the floor plan shown in Fig. 1, determine the following: (a) Classify the slabs of S1 and 52; (b) Tributary area of beam B1; (c) Tributary area of column B2 (at the intersection of grids B and 2); (d) Tributary area of column C3 (at the intersection of grids C and 3); and (e) Tributary area of beam B3. S2 15 B21 G2 1 B si la 20 3 @ 8' 24' 2 @ 10-20 Fig. 1 - Floor plan for Problem 1.
