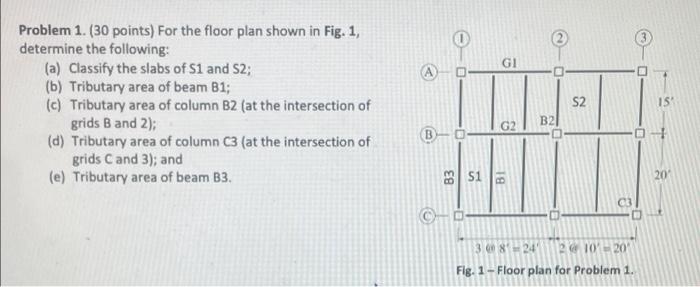

- GI Problem 1. (30 points) For the floor plan shown in Fig. 1, determine the following: (a) Classify the slabs of S1 and 52: (b) Tributary area of beam B1; (c) Tributary area of column B2 (at the intersection of grids B and 2); (d) Tributary area of column C3 (at the intersection of grids C and 3); and (e) Tributary area of beam B3. S2 IS G2 B2 51 201 3.68241 BREGAT 2010 20 Fig. 1 - Floor plan for Problem 1.
