The beam indicated below has failure (tension)=18 MPa, Tailure=1.2 MPa. Determine a) if the beam can safely support the

Post by answerhappygod »

The Beam Indicated Below Has Failure Tension 18 Mpa Tailure 1 2 Mpa Determine A If The Beam Can Safely Support The 1
The Beam Indicated Below Has Failure Tension 18 Mpa Tailure 1 2 Mpa Determine A If The Beam Can Safely Support The 1 (26.39 KiB) Viewed 22 times
this is the question
there is no beam section

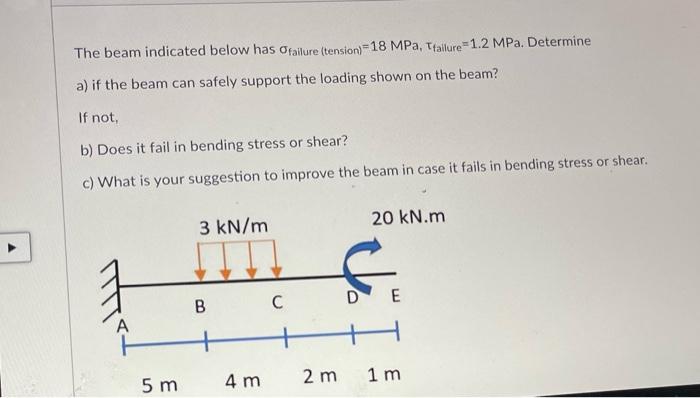

The beam indicated below has failure (tension)=18 MPa, Tailure=1.2 MPa. Determine a) if the beam can safely support the loading shown on the beam? If not, b) Does it fail in bending stress or shear? c) What is your suggestion to improve the beam in case it fails in bending stress or shear. 3 kN/m 20 kN.m С D E B А 4 m 2 m 5 m 1 m
