The cantilever beam consists of a rectangular structural steel tube shape (E = 26000 ksi: 1 - 394 in.). For the loading

Post by answerhappygod »

The Cantilever Beam Consists Of A Rectangular Structural Steel Tube Shape E 26000 Ksi 1 394 In For The Loading 1
The Cantilever Beam Consists Of A Rectangular Structural Steel Tube Shape E 26000 Ksi 1 394 In For The Loading 1 (19.86 KiB) Viewed 11 times

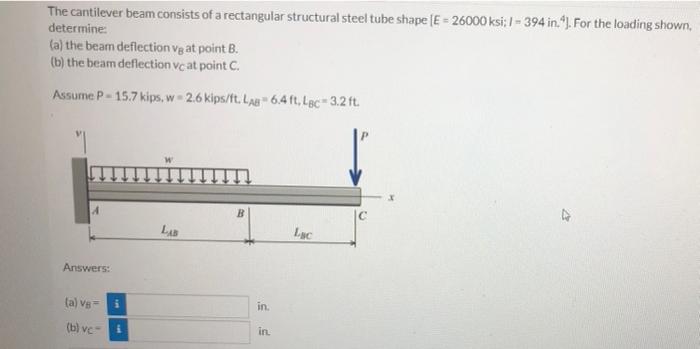

The cantilever beam consists of a rectangular structural steel tube shape (E = 26000 ksi: 1 - 394 in.). For the loading shown, determine: (a) the beam deflection vg at point B. (b) the beam deflection vc at point C. Assume P - 15.7 kips,w - 2.6 kips/ft. 1.8 6.4ft, Løc= 3.2 ft. с هما Lac Answers: (a) V- i in (b) ve in
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
