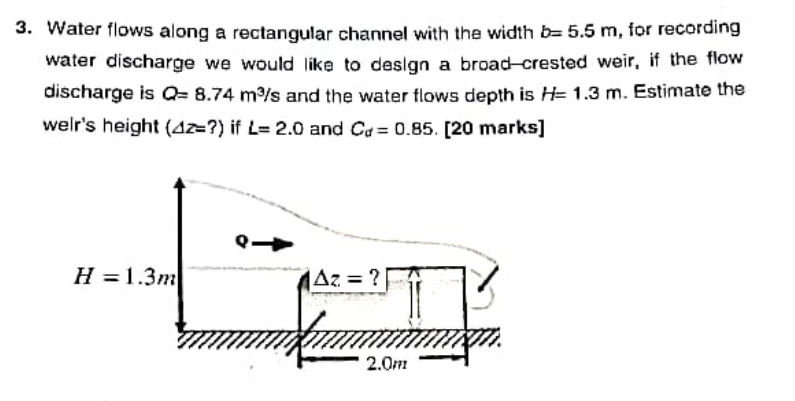

3. Water flows along a rectangular channel with the width b= 5.5 m, for recording water discharge we would like to design a broad-crested weir, if the flow discharge is Q= 8.74 m/s and the water flows depth is H=1.3 m. Estimate the welr's height (Az=?) if L= 2.0 and Ca=0.85. [20 marks] H=1.3m Az = ? 1 2.Om
