4. Consider the small dam sketched below with an ogee spillway, where the water depth is H = 23 m and the dam height is

Post by answerhappygod »

4 Consider The Small Dam Sketched Below With An Ogee Spillway Where The Water Depth Is H 23 M And The Dam Height Is 1
4 Consider The Small Dam Sketched Below With An Ogee Spillway Where The Water Depth Is H 23 M And The Dam Height Is 1 (146.13 KiB) Viewed 15 times

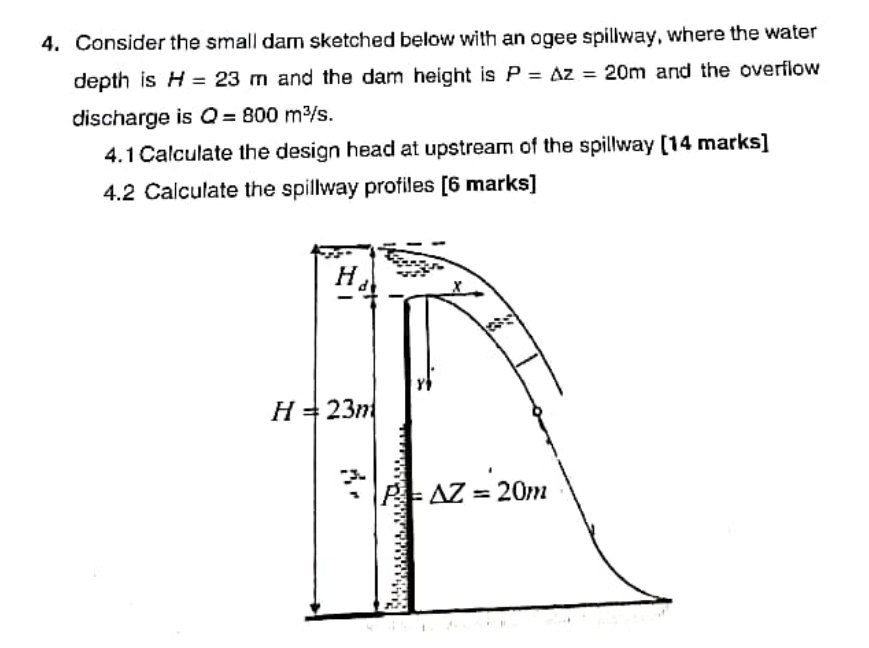

4. Consider the small dam sketched below with an ogee spillway, where the water depth is H = 23 m and the dam height is P = Az = 20m and the overflow discharge is Q = 800 m3/s. 4.1 Calculate the design head at upstream of the spillway (14 marks] 4.2 Calculate the spillway profiles [6 marks] Н. "3 H=23m BENZ = 20m www.
