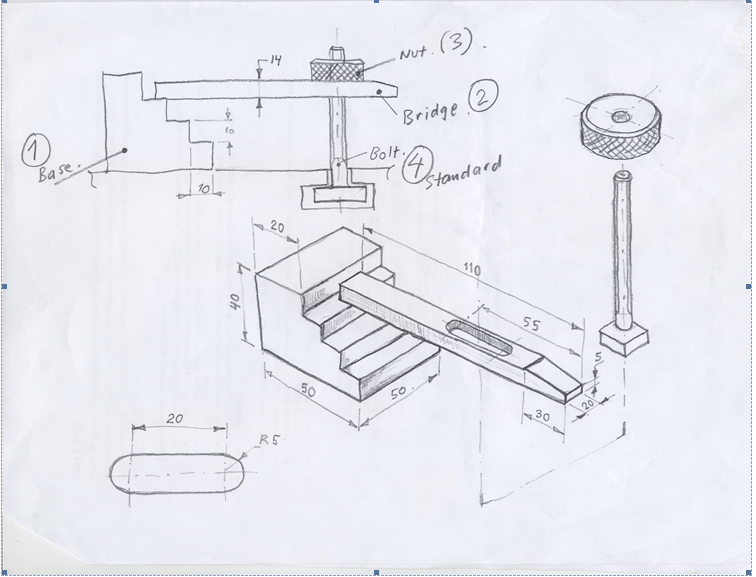

Draw 3-views of part number 1, 2 and 3 with all dimensions
completely (top front left) . Use European system. Sketch is
not to scale. Take guesses for not written/ unknown dimensions.
