 Determine the reactions  Draw the shear and bending moment diagrams for Beam ABC. Use a combination of the methods in

Post by answerhappygod »

 Determine the reactions
 Draw the shear and bending moment diagrams for Beam ABC. Use a
combination of
the methods in sections 7.1, 7.2 and 7.3, as needed. Specify which
parts of the
moment diagram are straight.
 Specify magnitude and location of maximum shear and bending
moments
Determine The Reactions Draw The Shear And Bending Moment Diagrams For Beam Abc Use A Combination Of The Methods In 1
Determine The Reactions Draw The Shear And Bending Moment Diagrams For Beam Abc Use A Combination Of The Methods In 1 (15.86 KiB) Viewed 9 times

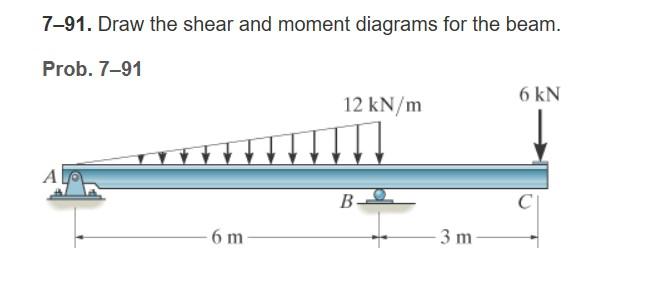

7-91. Draw the shear and moment diagrams for the beam. Prob. 7-91 12 kN/m 6 kN B с 6 m -3 m
