This problem is based on the figure for Problem 7-77.
Determine the reactions
Draw the shear and bending moment diagrams for the beam. Use the
relations
between distributed load, shear and moments (Section 7.3) to solve
the problem.
Specify which parts of the moment diagram are straight (or
curved).
Specify magnitude and location of maximum shear and bending
moments
This Problem Is Based On The Figure For Problem 7 77 Determine The Reactions Draw The Shear And Bending Moment Diag 1 (14.05 KiB) Viewed 10 times

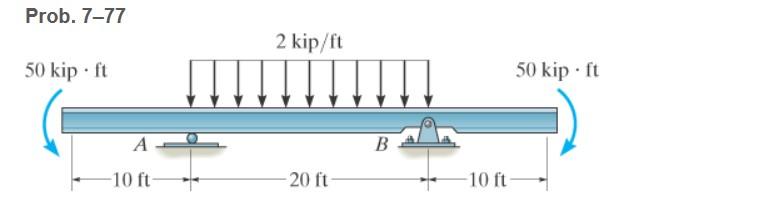

Prob. 7-77 2 kip/ft 50 kip. ft 50 kip. ft А B 10 ft -20 ft -10 ft
