P P₂ 8 9 10 12 13 12'0" TYP. 14 15 16 17 12'-0" TYP Use the diagram shown above. Given . P1 = 200 # P2 = 600 # Pa = 800

Post by answerhappygod »

P P 8 9 10 12 13 12 0 Typ 14 15 16 17 12 0 Typ Use The Diagram Shown Above Given P1 200 P2 600 Pa 800 1
P P 8 9 10 12 13 12 0 Typ 14 15 16 17 12 0 Typ Use The Diagram Shown Above Given P1 200 P2 600 Pa 800 1 (29.76 KiB) Viewed 22 times

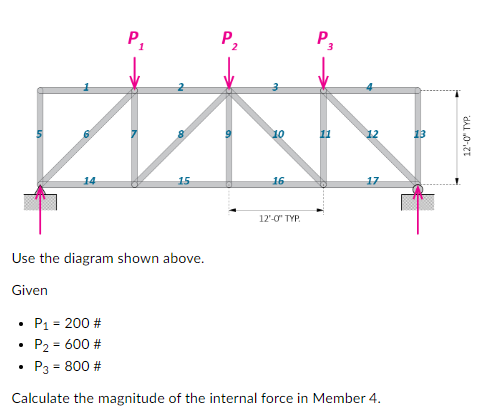

P P₂ 8 9 10 12 13 12'0" TYP. 14 15 16 17 12'-0" TYP Use the diagram shown above. Given . P1 = 200 # P2 = 600 # Pa = 800 # Calculate the magnitude of the internal force in Member 4.
