4. (20%) Design the required length for a welded connection for an MC9x23.9 of A572 Grade 50 steel connected to a 38-inc

Post by answerhappygod »

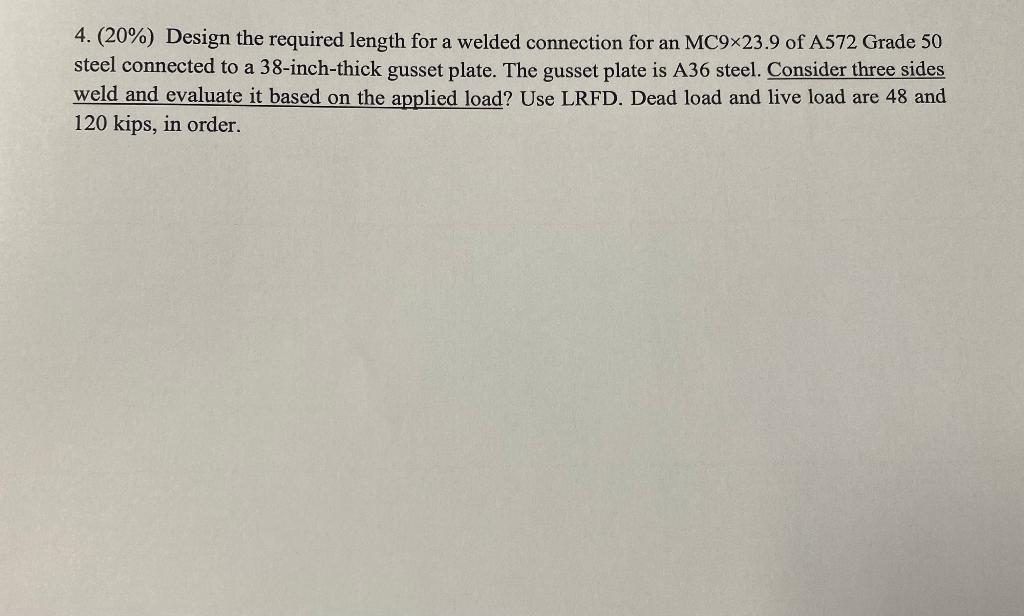

4 20 Design The Required Length For A Welded Connection For An Mc9x23 9 Of A572 Grade 50 Steel Connected To A 38 Inc 1
4 20 Design The Required Length For A Welded Connection For An Mc9x23 9 Of A572 Grade 50 Steel Connected To A 38 Inc 1 (58.69 KiB) Viewed 10 times
4. (20%) Design the required length for a welded connection for an MC9x23.9 of A572 Grade 50 steel connected to a 38-inch-thick gusset plate. The gusset plate is A36 steel. Consider three sides weld and evaluate it based on the applied load? Use LRFD. Dead load and live load are 48 and 120 kips, in order.
