3. (30%) Assume the member is hinged with respect to bending in both x and y directions at the top and bottom. Additiona

Post by answerhappygod »

3 30 Assume The Member Is Hinged With Respect To Bending In Both X And Y Directions At The Top And Bottom Additiona 1
3 30 Assume The Member Is Hinged With Respect To Bending In Both X And Y Directions At The Top And Bottom Additiona 1 (86.6 KiB) Viewed 10 times

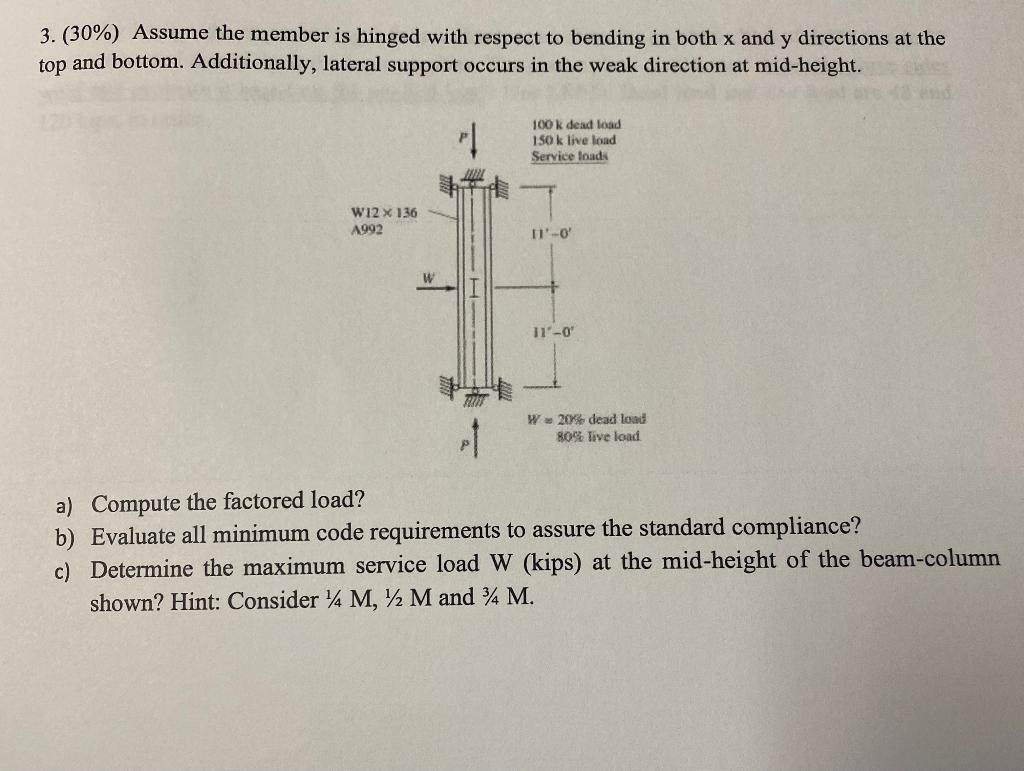

3. (30%) Assume the member is hinged with respect to bending in both x and y directions at the top and bottom. Additionally, lateral support occurs in the weak direction at mid-height. 1 100 k dead load 150 k live load Service loads WI2 X 136 A992 11-0 w 11-0 ol W 20 dead load 80% live load a) Compute the factored load? b) Evaluate all minimum code requirements to assure the standard compliance? c) Determine the maximum service load W (kips) at the mid-height of the beam-column shown? Hint: Consider 14 M, 12 M and 34 M.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
