max 1 kN/m 4 kN 12. Draw the S.F. and B.M. diagrams of the beam shown in Fig. 4:50. Indicate on the diagrams values of t

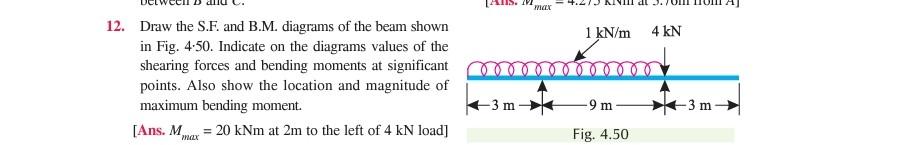

max 1 kN/m 4 kN 12. Draw the S.F. and B.M. diagrams of the beam shown in Fig. 4:50. Indicate on the diagrams values of the shearing forces and bending moments at significant points. Also show the location and magnitude of maximum bending moment. [Ans. Mar = 20 kNm at 2m to the left of 4 kN load] 3 m 9 m -3 m Fig. 4.50
