258 Strength of Materials 9. A beam ABCD, 10m long, is simply supported at B and C which are 4m apart, and overhangs the

[answerhappygod]

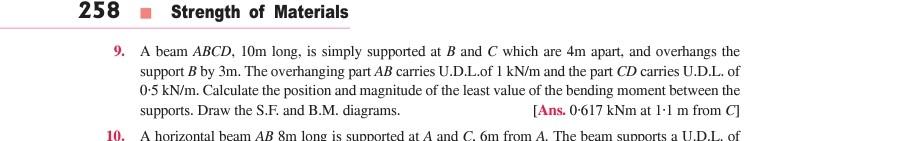

258 Strength Of Materials 9 A Beam Abcd 10m Long Is Simply Supported At B And C Which Are 4m Apart And Overhangs The 1 (24.28 KiB) Viewed 24 times

258 Strength of Materials 9. A beam ABCD, 10m long, is simply supported at B and C which are 4m apart, and overhangs the support B by 3m. The overhanging part AB carries U.D.L.of 1 kN/m and the part CD carries U.D.L. of 0.5 kN/m. Calculate the position and magnitude of the least value of the bending moment between the supports. Draw the S.E. and B.M. diagrams. [Ans. 0-617 kNm at l'1 m from C] 10. A horizontal beam AB 8m long is supported at A and C. 6m from A. The beam supports a U.D.L. of
