6. Draw the qualitative (numbers are not required) influence line on Sketch 1 below for the shear at A, VA (4 points) On

Post by answerhappygod »

6 Draw The Qualitative Numbers Are Not Required Influence Line On Sketch 1 Below For The Shear At A Va 4 Points On 1
6 Draw The Qualitative Numbers Are Not Required Influence Line On Sketch 1 Below For The Shear At A Va 4 Points On 1 (21.7 KiB) Viewed 12 times

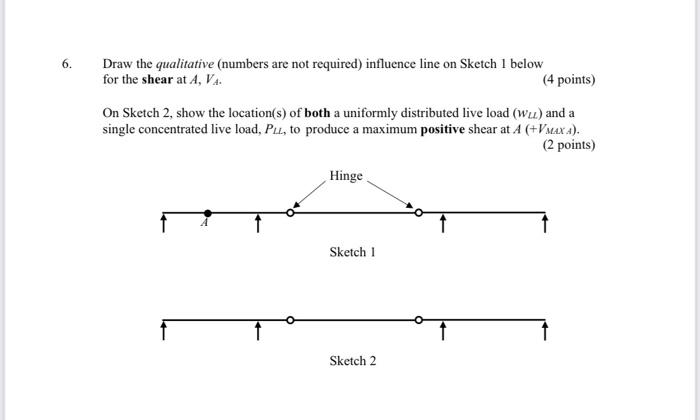

6. Draw the qualitative (numbers are not required) influence line on Sketch 1 below for the shear at A, VA (4 points) On Sketch 2, show the location(s) of both a uniformly distributed live load (WL) and a single concentrated live load, Pll, to produce a maximum positive shear at A (+V MAX A). (2 points) Hinge Sketch1 Sketch 2
