4. 4. Given: (12 points) Beam with loads in blue and reactions in red as shown along with the shear diagram Find: Draw t

[answerhappygod]

4 4 Given 12 Points Beam With Loads In Blue And Reactions In Red As Shown Along With The Shear Diagram Find Draw T 1 (26.96 KiB) Viewed 17 times

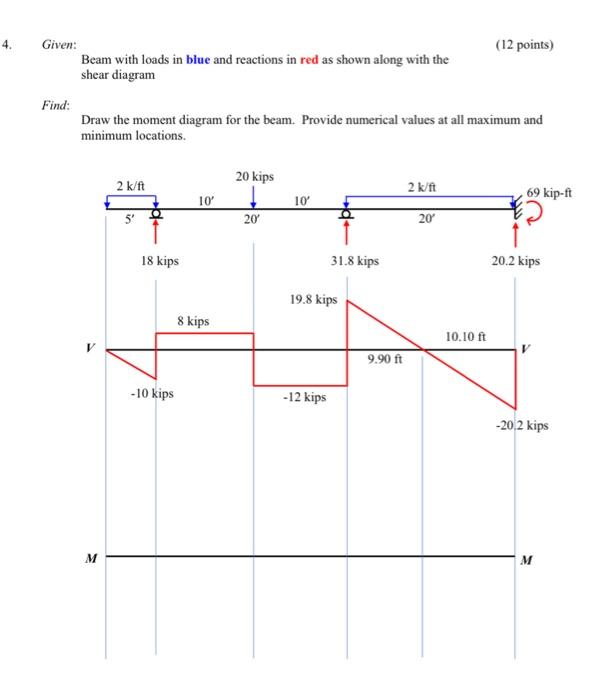

4. 4. Given: (12 points) Beam with loads in blue and reactions in red as shown along with the shear diagram Find: Draw the moment diagram for the beam. Provide numerical values at all maximum and minimum locations. 2 k/ft 20 kips 1 2 k/tt 10 10 69 kip-ft S 20 20 18 kips 31.8 kips 20.2 kips 19.8 kips 8 kips 10.10 ft 9.90 ft -10 kips -12 kips -20 2 kips M M
