5. Given: (14 points) 10 KN 4 m 15 kN The truss with loads. Find: The forces in members CD, EF and BF (marked with a red

Post by answerhappygod »

5 Given 14 Points 10 Kn 4 M 15 Kn The Truss With Loads Find The Forces In Members Cd Ef And Bf Marked With A Red 1
5 Given 14 Points 10 Kn 4 M 15 Kn The Truss With Loads Find The Forces In Members Cd Ef And Bf Marked With A Red 1 (22.74 KiB) Viewed 18 times

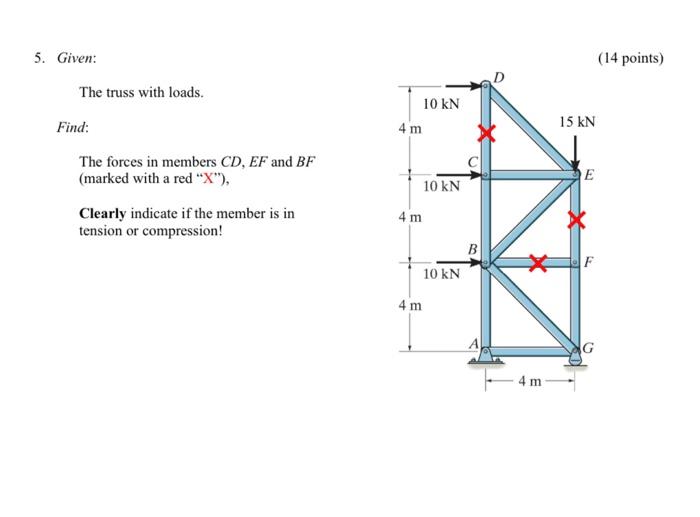

5. Given: (14 points) 10 KN 4 m 15 kN The truss with loads. Find: The forces in members CD, EF and BF (marked with a red "X"), Clearly indicate if the member is in tension or compression! E 10 KN 4 m B 10 KN 4 m 4 m
