6. Given: The 2-span beam as shown E and I are constant (20 points) Find: The vertical reaction at A only and the moment

Post by answerhappygod »

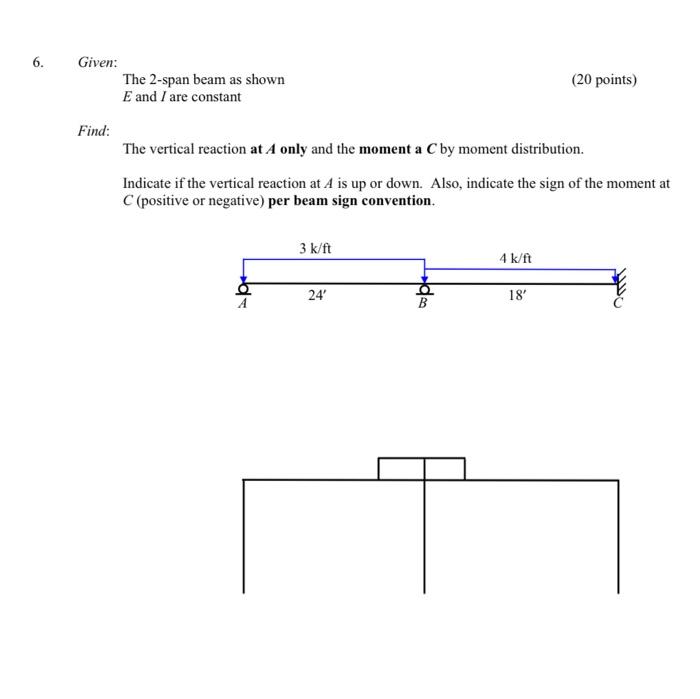

6 Given The 2 Span Beam As Shown E And I Are Constant 20 Points Find The Vertical Reaction At A Only And The Moment 1
6 Given The 2 Span Beam As Shown E And I Are Constant 20 Points Find The Vertical Reaction At A Only And The Moment 1 (26.2 KiB) Viewed 17 times
6. Given: The 2-span beam as shown E and I are constant (20 points) Find: The vertical reaction at A only and the moment a C by moment distribution. Indicate if the vertical reaction at A is up or down. Also, indicate the sign of the moment at C(positive or negative) per beam sign convention. 3 k/ft 4 k/ft 호 bo 24' Ida 18 А
