2- Find the amount of seismic resultant active force on a retaining wall below based on the Monobe- Okabe approach. Plea

Post by answerhappygod »

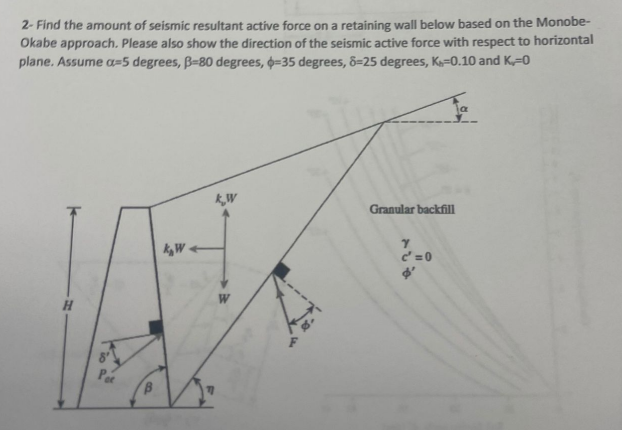

2 Find The Amount Of Seismic Resultant Active Force On A Retaining Wall Below Based On The Monobe Okabe Approach Plea 1
2 Find The Amount Of Seismic Resultant Active Force On A Retaining Wall Below Based On The Monobe Okabe Approach Plea 1 (229.44 KiB) Viewed 31 times
2- Find the amount of seismic resultant active force on a retaining wall below based on the Monobe- Okabe approach. Please also show the direction of the seismic active force with respect to horizontal plane. Assume a=5 degrees, B=80 degrees, º=35 degrees, 8=25 degrees, K=0.10 and K.=0 la kw Granular backfill y kW e' = 0 W H B
