2 m shown in Fig. 4:49. Also find the position and mag- nitude of the maximum bending moment. [Ans. Position of maximum

[answerhappygod]

2 M Shown In Fig 4 49 Also Find The Position And Mag Nitude Of The Maximum Bending Moment Ans Position Of Maximum 1 (32.01 KiB) Viewed 28 times

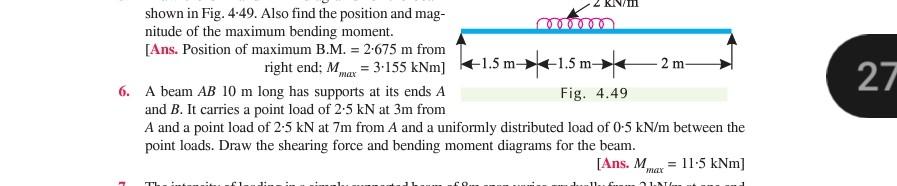

2 m shown in Fig. 4:49. Also find the position and mag- nitude of the maximum bending moment. [Ans. Position of maximum B.M. = 2.675 m from right end; Mmex = 3.155 kNm] +1.5 m +1.5 m 6. A beam AB 10 m long has supports at its ends A Fig. 4.49 and B. It carries a point load of 2.5 kN at 3m from A and a point load of 2.5 kN at 7m from A and a uniformly distributed load of 0-5 kN/m between the point loads. Draw the shearing force and bending moment diagrams for the beam. [Ans. Max = 11.5 kNm] 27 LG
