oblem 4-38, 8th edition. Draw the shear and moment diagrams for each of the three members St the frame. Assume the frame

Post by answerhappygod »

Oblem 4 38 8th Edition Draw The Shear And Moment Diagrams For Each Of The Three Members St The Frame Assume The Frame 1
Oblem 4 38 8th Edition Draw The Shear And Moment Diagrams For Each Of The Three Members St The Frame Assume The Frame 1 (245 KiB) Viewed 13 times

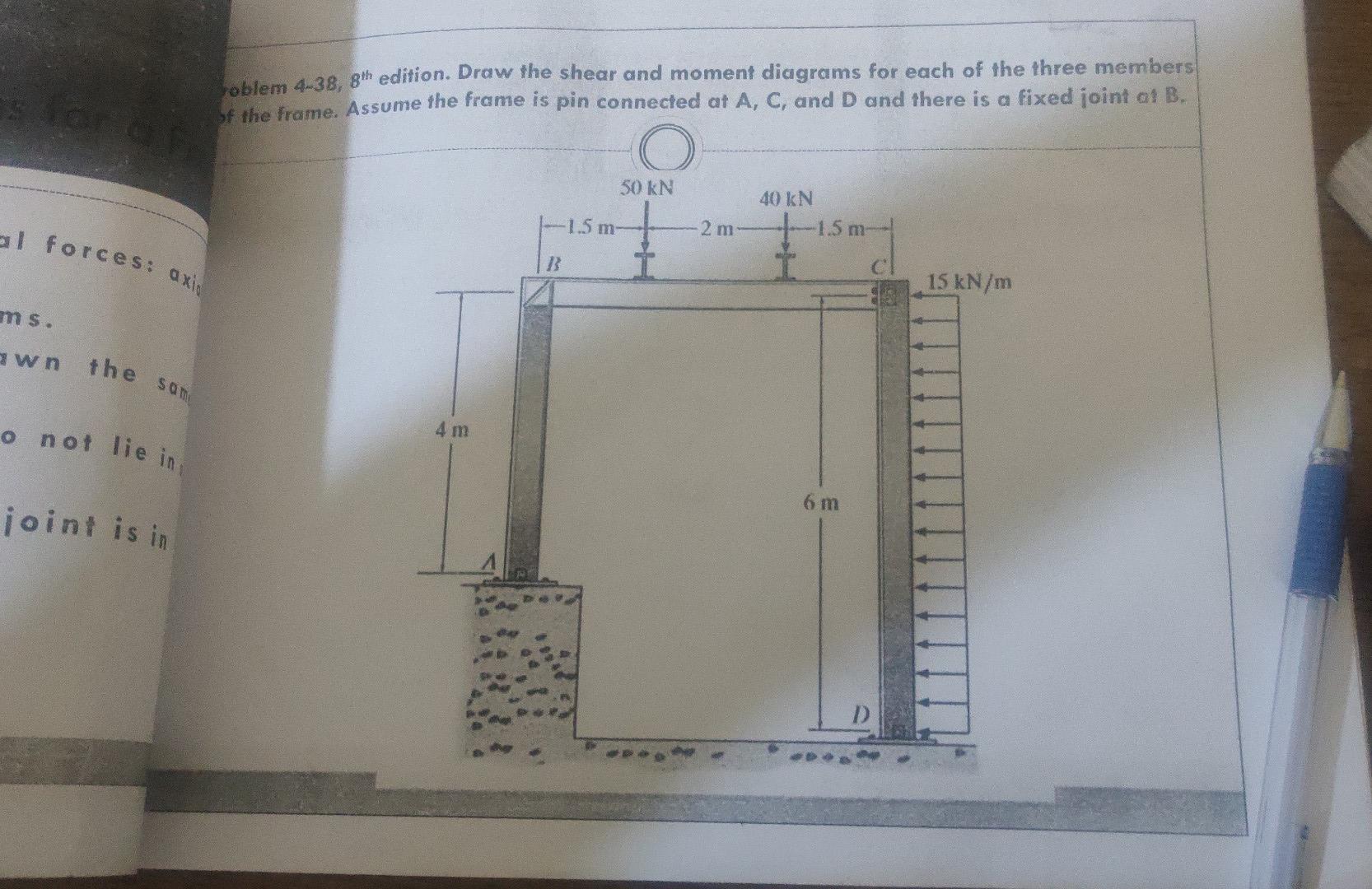

oblem 4-38, 8th edition. Draw the shear and moment diagrams for each of the three members St the frame. Assume the frame is pin connected at A, C, and D and there is a fixed joint at B. O SO KN 40 KN 1.5 m al forces: axio 1.5 m 2 m † 15 kN/m ms. awn the sam o not lie in 4 m 6 m joint is in D
