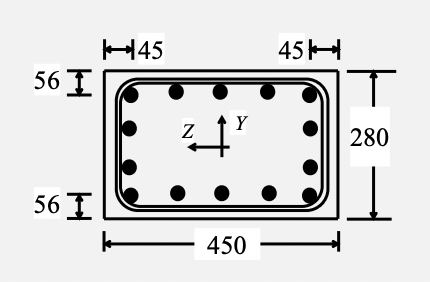

Problem 1: For the column shown determine:
(a) The eccentricity of the axial force if Fu = 1320 kN and the
Very = 157 kNm. Represent your answer in a
diagram of the equivalent force-position system.
(b) The moment at which the axial force Fu = 1320 kN occurs if the
eccentricity ez = 95.8 mm. represent your
answer on a diagram of the equivalent force-couple system.
Problem 1 For The Column Shown Determine A The Eccentricity Of The Axial Force If Fu 1320 Kn And The Very 157 Kn 1 (43.7 KiB) Viewed 21 times
145 45 56 I T 1 Y Z 280 561 450
