QUESTION 3 [25] Figure 2 below shows a fixed - end (encastre) beam. Using moment area method, derive a formula for the f

[answerhappygod]

Question 3 25 Figure 2 Below Shows A Fixed End Encastre Beam Using Moment Area Method Derive A Formula For The F 1 (63.24 KiB) Viewed 25 times

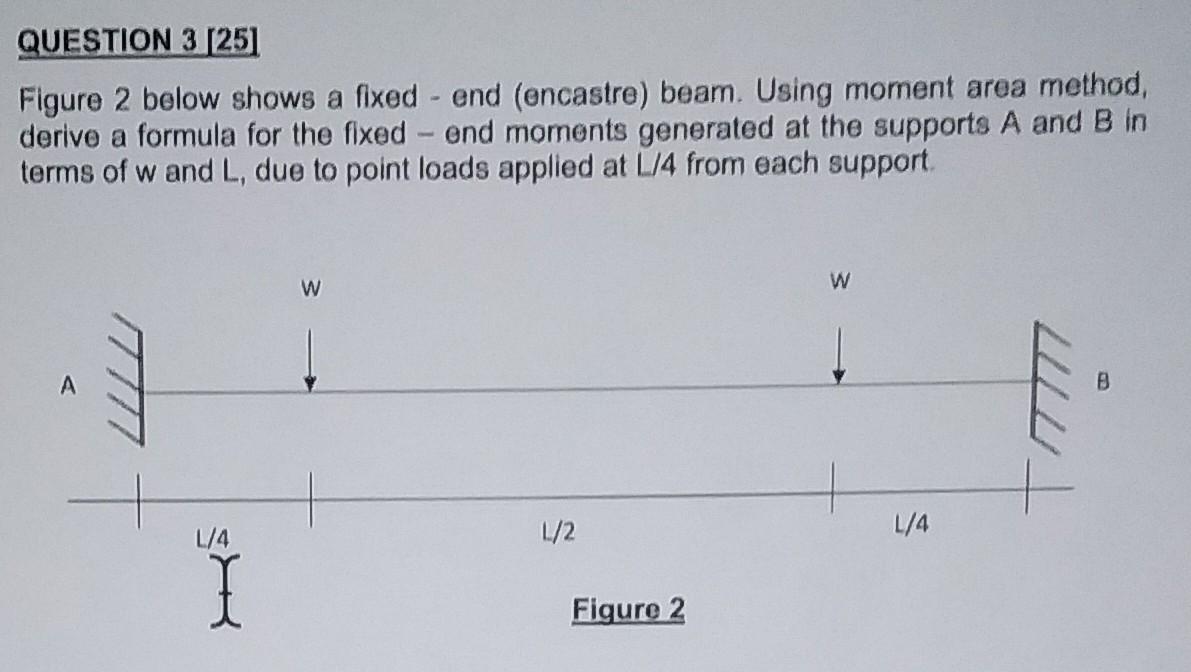

QUESTION 3 [25] Figure 2 below shows a fixed - end (encastre) beam. Using moment area method, derive a formula for the fixed - end moments generated at the supports A and B in terms of w and L, due to point loads applied at L/4 from each support w w Lies L/4 1/2 L/4 I Figure 2
