QUESTION 21281 The frame shown as Figure I below is purned A and supported by an roller at The frame is subjected to loa

Post by answerhappygod »

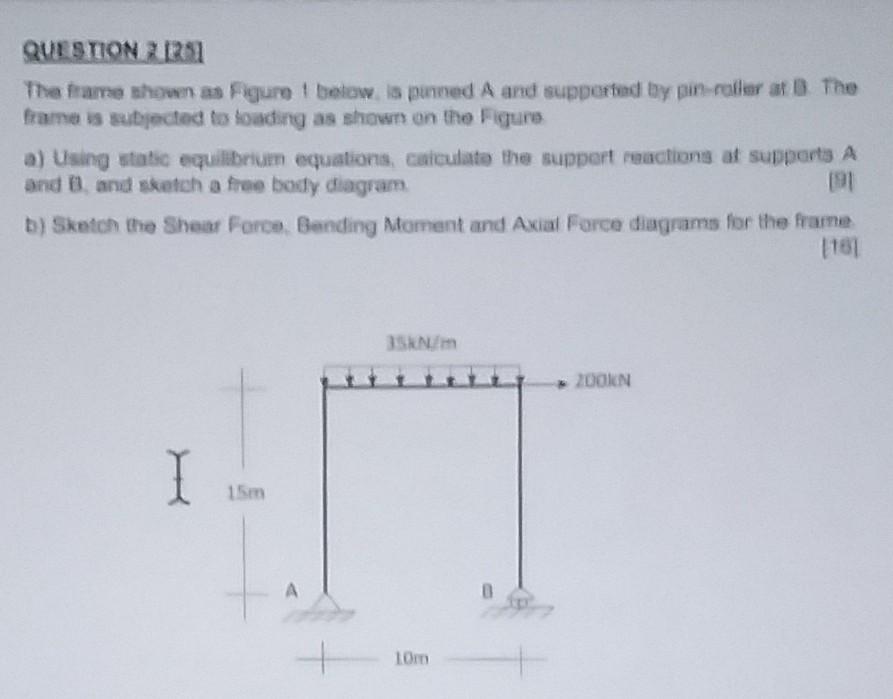

Question 21281 The Frame Shown As Figure I Below Is Purned A And Supported By An Roller At The Frame Is Subjected To Loa 1
Question 21281 The Frame Shown As Figure I Below Is Purned A And Supported By An Roller At The Frame Is Subjected To Loa 1 (38.37 KiB) Viewed 19 times
QUESTION 21281 The frame shown as Figure I below is purned A and supported by an roller at The frame is subjected to loading as shown on the Figure a) Using static equilibrium equations, calculate the support reactions at supports A and B. and sketch a free body diagram b) Sketch the Shear Force Bending Moment and Axial Force diagrams for the frame 1187 SKIM 200KN I 15m A 0 10m
