Find the resultant vector of vectors A and B shown in the drawing below. Calculate the angle between resultant force and

[answerhappygod]

Find The Resultant Vector Of Vectors A And B Shown In The Drawing Below Calculate The Angle Between Resultant Force And 1 (35.24 KiB) Viewed 14 times

Find The Resultant Vector Of Vectors A And B Shown In The Drawing Below Calculate The Angle Between Resultant Force And 2 (37.07 KiB) Viewed 14 times

Find The Resultant Vector Of Vectors A And B Shown In The Drawing Below Calculate The Angle Between Resultant Force And 3 (26.64 KiB) Viewed 14 times

Find The Resultant Vector Of Vectors A And B Shown In The Drawing Below Calculate The Angle Between Resultant Force And 4 (28.69 KiB) Viewed 14 times

Find The Resultant Vector Of Vectors A And B Shown In The Drawing Below Calculate The Angle Between Resultant Force And 5 (47.89 KiB) Viewed 14 times

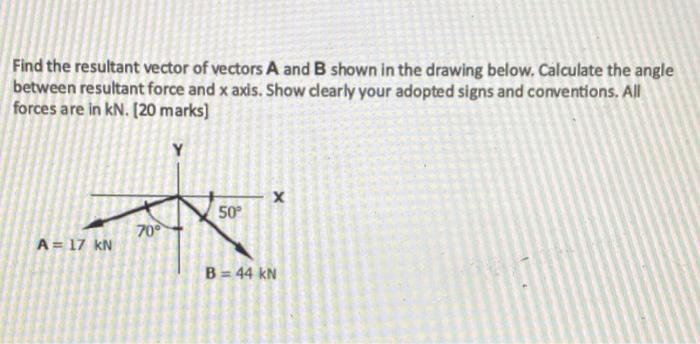

Find the resultant vector of vectors A and B shown in the drawing below. Calculate the angle between resultant force and x axis. Show clearly your adopted signs and conventions. All forces are in kN. (20 marks) Y х 50° 700 A= 17 KN B = 44 kN
2. Calculate the reactions at the supports for the beams shown below. 3 kN/m 20 KN BITTTIC Tic D25 (a) A 1 m 1 m 1m kim 1 (D) 7N 2 Alone BC D SS 255mm 1m 2m 75 mm

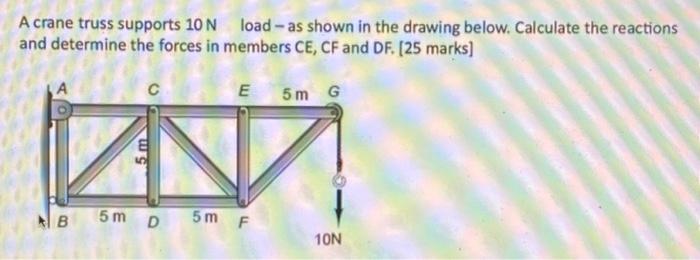

A crane truss supports 10N load - as shown in the drawing below. Calculate the reactions and determine the forces in members CE, CF and DF. [25 marks] с E 5m G N AB 5m D 5m F 10N

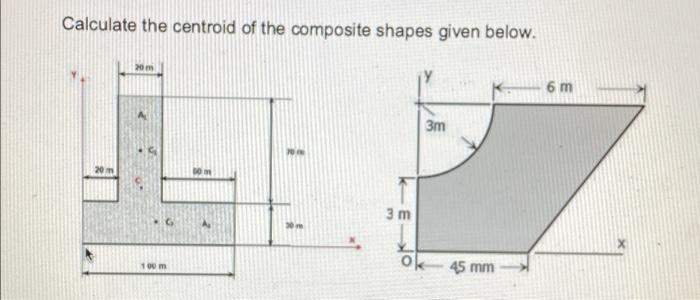

Calculate the centroid of the composite shapes given below. 20 6 m 3m 20 m BO 3 m om 45 mm

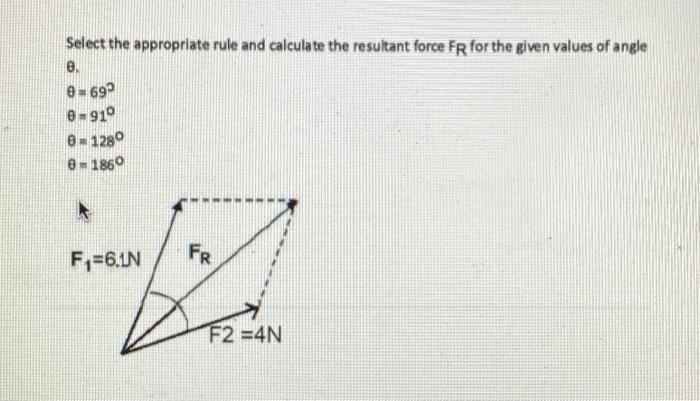

Select the appropriate rule and calculate the resultant force FR for the given values of angle e. @=699 8-91° 0 - 1280 0 - 1860 F =6.1N FR F2 =4N
