= = The stresses shown act at a point in a stressed body. Assume stress magnitudes of Sx = 31 MPa, Sy = 95 MPa, Sxy= 21

[answerhappygod]

The Stresses Shown Act At A Point In A Stressed Body Assume Stress Magnitudes Of Sx 31 Mpa Sy 95 Mpa Sxy 21 1 (96.49 KiB) Viewed 22 times

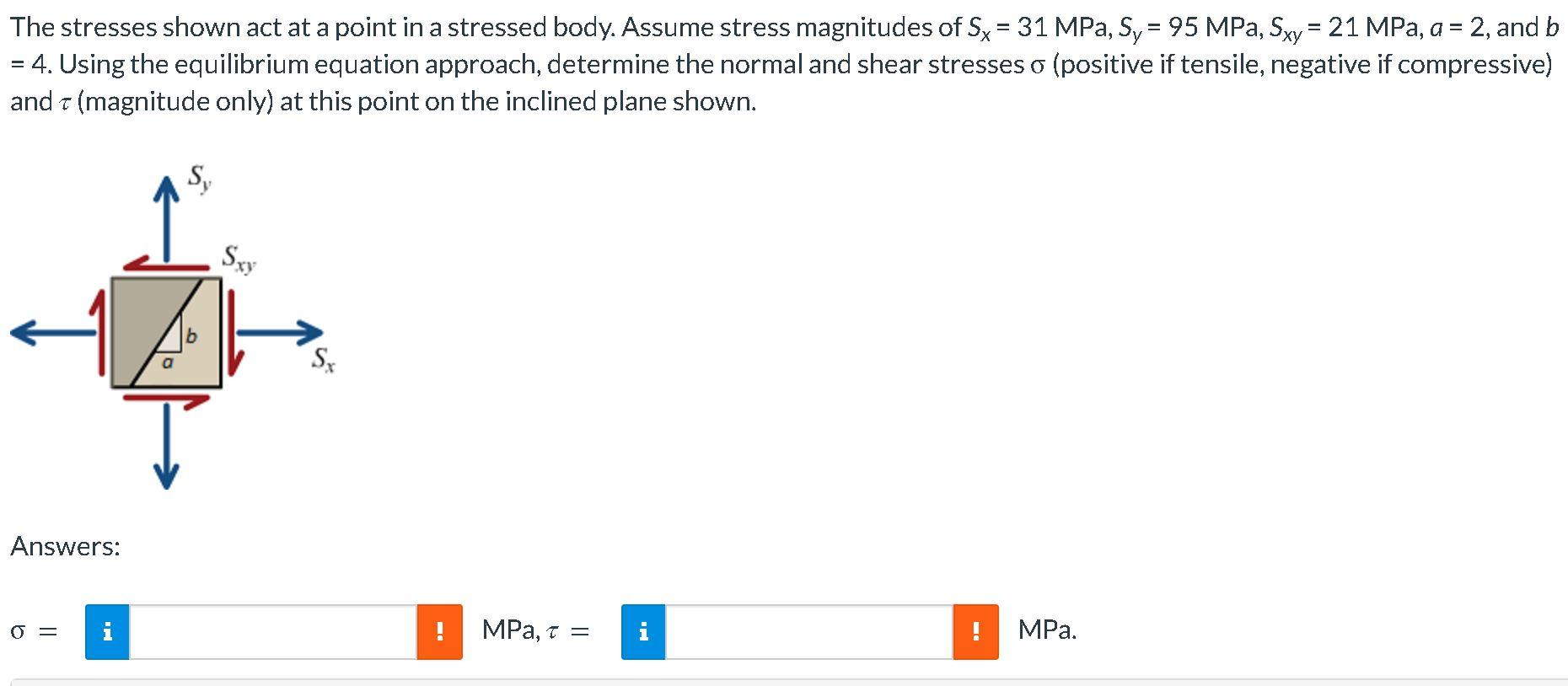

= = The stresses shown act at a point in a stressed body. Assume stress magnitudes of Sx = 31 MPa, Sy = 95 MPa, Sxy= 21 MPa, a = 2, and b = 4. Using the equilibrium equation approach, determine the normal and shear stresses o (positive if tensile, negative if compressive) and T (magnitude only) at this point on the inclined plane shown. = T S, Sxy A Sy Answers: = H. MPa, T = PO MPa.
