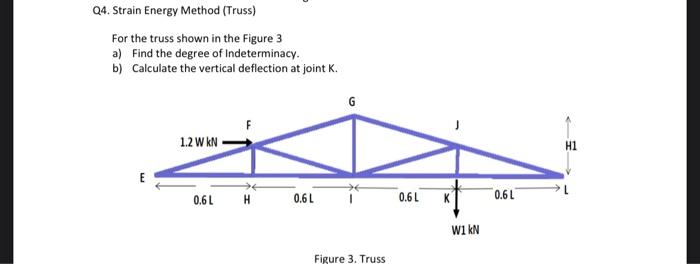

Q4. Strain Energy Method (Truss) For the truss shown in the Figure 3 a) Find the degree of Indeterminacy. b) Calculate the vertical deflection at joint K. G 1.2 W kN H1 E 0.6L H 0.6 L 0.6L 0.6L WI KN Figure 3. Truss

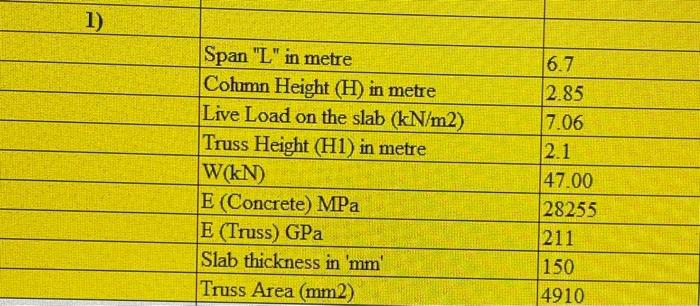

1) Span "L" in metre Column Height (H) in metre Live Load on the slab (kN/m2) Truss Height (H1) in metre W(KN) E (Concrete) MPa E (Truss) GPa Slab thickness in 'mm' Truss Area (mm2) 6.7 2.85 7.06 2.1 47.00 28255 211 150 4910
