Question 29 3 pts Below is a plan showing the shear-wall layout and a rigid diaphragm, Assuming the lateral load P = 360

Post by answerhappygod »

Question 29 3 Pts Below Is A Plan Showing The Shear Wall Layout And A Rigid Diaphragm Assuming The Lateral Load P 360 1
Question 29 3 Pts Below Is A Plan Showing The Shear Wall Layout And A Rigid Diaphragm Assuming The Lateral Load P 360 1 (110.32 KiB) Viewed 26 times

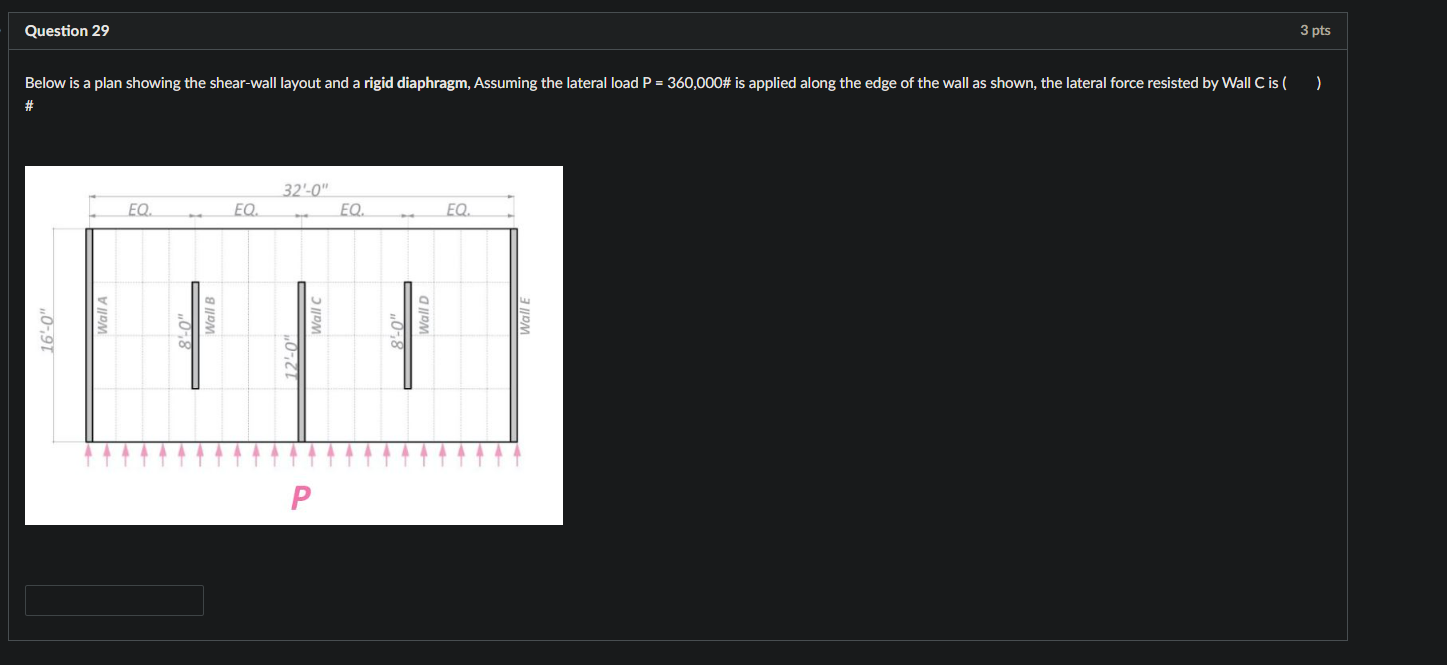

Question 29 3 pts Below is a plan showing the shear-wall layout and a rigid diaphragm, Assuming the lateral load P = 360,000# is applied along the edge of the wall as shown, the lateral force resisted by Wall Cis ) 32-0" EQ. EQ. EQ. EQ Wall A Wall B Wall ..0- Wall D Wall E 12-01 1 Р
