EMERGENCY!!
i would really appreciated if answer this question quickly thanks you all
!
Emergency I Would Really Appreciated If Answer This Question Quickly Thanks You All The State Of Plane Stress At A P 1 (18.83 KiB) Viewed 11 times

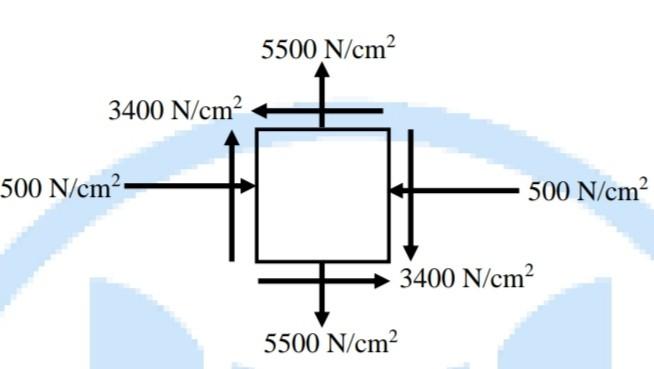

The state of plane stress at a point is represented on the differential element.
a) Determine principal stresses and corresponding directions. Indicate the results on a rotated differential element.
b) Determine maximum in-plane shear stress and directions. Indicate the results on a
rotated differential element.
5500 N/cm2 3400 N/cm² 500 N/cm²- 500 N/cm2 3400 N/cm 5500 N/cm2
