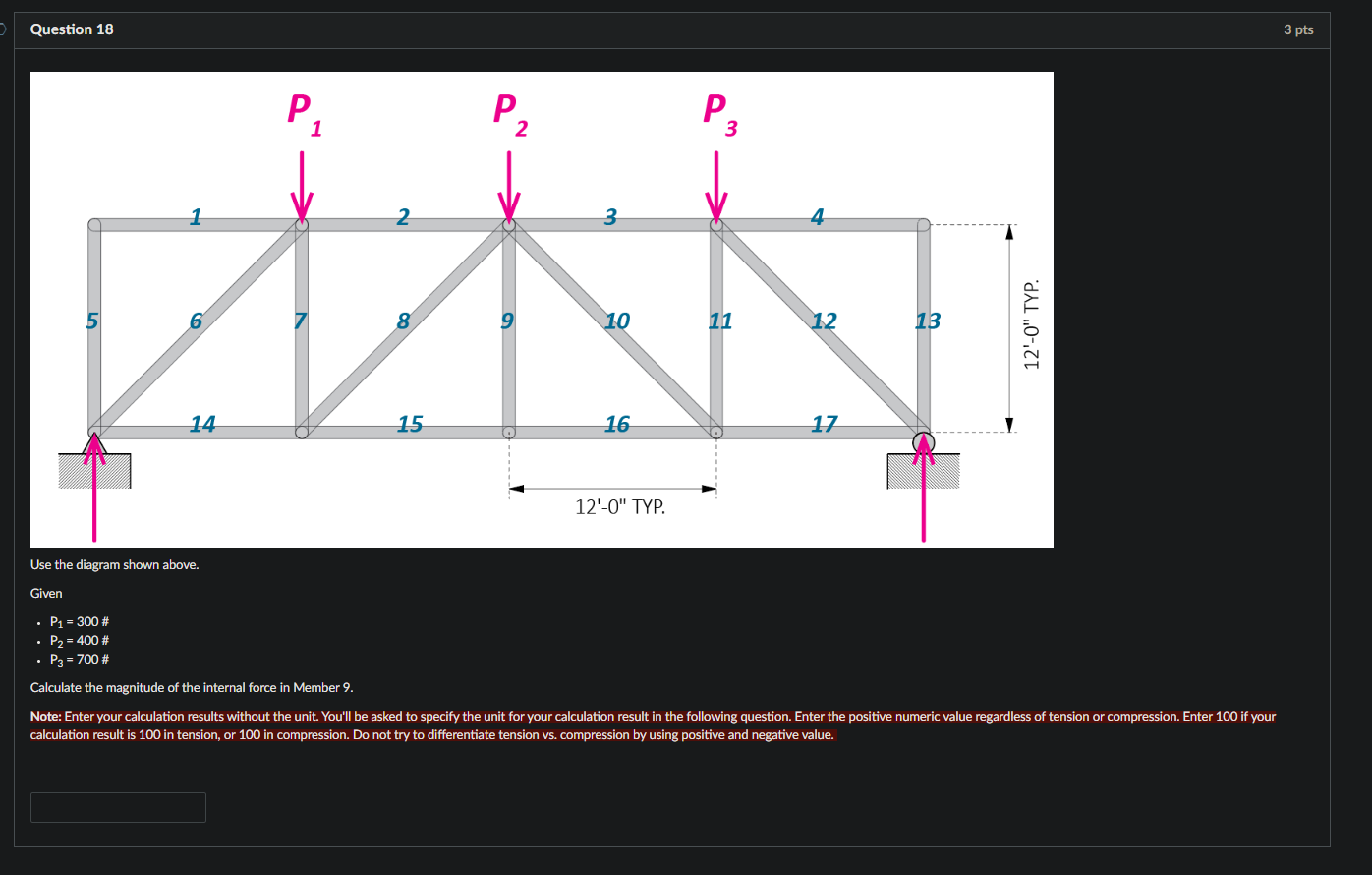

Question 18 3 pts Pi P2 P3 1 2 3 4 8 10 11 12 13 12'-0" TYP 14 15 16 17 12'-0" TYP. Use the diagram shown above. Given ·

[answerhappygod]

Question 18 3 Pts Pi P2 P3 1 2 3 4 8 10 11 12 13 12 0 Typ 14 15 16 17 12 0 Typ Use The Diagram Shown Above Given 1 (89.12 KiB) Viewed 13 times

Question 18 3 pts Pi P2 P3 1 2 3 4 8 10 11 12 13 12'-0" TYP 14 15 16 17 12'-0" TYP. Use the diagram shown above. Given · P1 = 300 # • P, = 400 # • P3 - 700 # Calculate the magnitude of the internal force in Member 9. Note: Enter your calculation results without the unit. You'll be asked to specify the unit for your calculation result in the following question. Enter the positive numeric value regardless of tension or compression. Enter 100 if your calculation result is 100 in tension, or 100 in compression. Do not try to differentiate tension vs. compression by using positive and negative value.
