Assume that:
What is the tributary area for the beam on grid line
B? The dimensions of the building are as follows:
A B С D E Girder 1 Joist Beam EQ. 2 . Y ft EQ. 3 Girder EQ. EQ. EQ. EQ. X ft
A B С D E Girder 1 Joist Beam EQ. 2 . Y ft EQ. 3 Girder EQ. EQ. EQ. EQ. X ft
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
A B С D E Girder 1 Joist Beam EQ. 2 . Y ft EQ. 3 Girder EQ. EQ. EQ. EQ. X ft

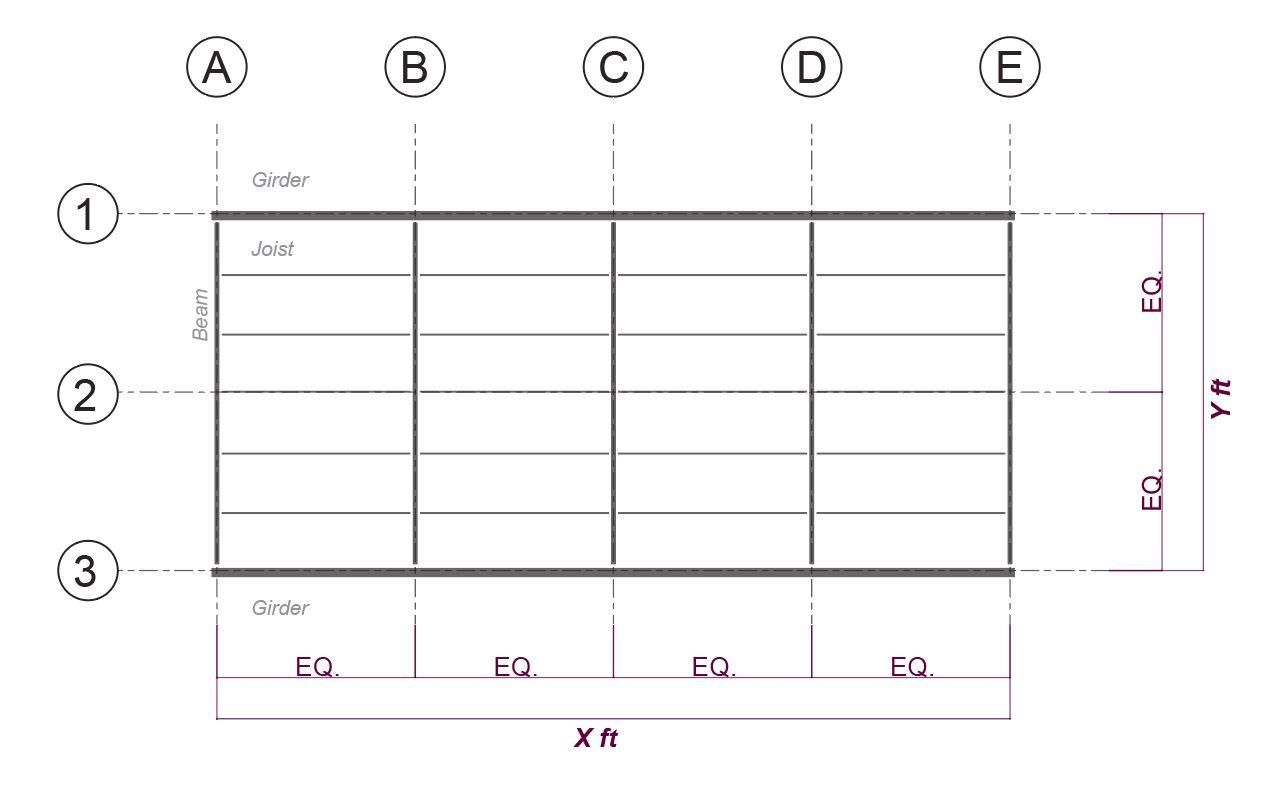

See the framing plan above.
